SACC-DSI-M12MS-17CON-M16/0,15 - Device connector, rear mounting
In stock: No
Vendor stock: No
Minimal order quantity: 500
Price (excl. VAT):
18,32 €
per pcs
Subtotal: 9 160,00 €
MOQ: 500
EAN: 4063151195168
MPN: 1170831
Box: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SACC-DSI-M12MS-17CON-M16/0,15 - Device connector, rear mounting |
| Brand | Phoenix Contact |
| Categories |
Circular Connectors
|
| Country of origin | DE |
| Harmonized System Code | 8544 4290 00 |
| Rated voltage | 30 V |
| Contact type | Pin |
| Ambient temperature | 85 °C |
| Degree of protection (IP), mounted | IP65/IP67 |
| Rated current In | 1.5 A |
| Number of power contacts | 0 |
| Number of control contacts | 17 |
| Number of data contacts | 0 |
Packing details
| Packing level 1 | 4063151195168 |
Other Technical data
| Locking mechanism | Other |
| Screened | No |
| Housing material | Other |
| With status indication | No |
| Inflammability class of insulation material according to with UL94 | V0 |
| Material of contact surface | Gold |
| Over voltage category | II |
| Pollution degree | 3 |
| With protective conductor | No |
| Min. number of insertion cycles | 100 |
| Material thread ring | Other |
Description

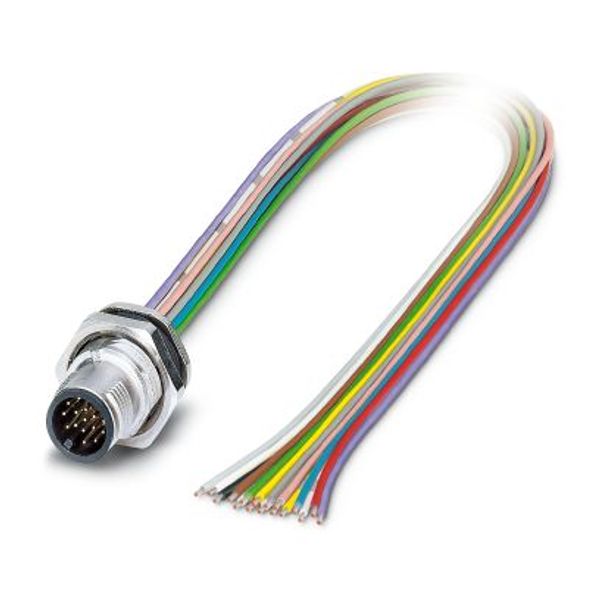

Sensor/actuator flush-type plug, 17-pos., M12 SPEEDCON, rear/screw mounting with M16 thread, with 0.5 m halogen-free TPE litz wire, 17 x 0.14 mm²
