SACC-DSI-M12FS-17CON-M16/0,11 - Device connector, rear mounting

Name: SACC-DSI-M12FS-17CON-M16/0,11 - Device connector, rear mounting
Brand: Phoenix Contact
Price: 19.150 EUR
Availability: PreOrder

In stock: No Vendor stock: No Minimal order quantity: 500

Price (excl. VAT):

19,15 € per pcs

This price is valid until 24.12.25

Subtotal: 9 575,00 € MOQ: 500

EAN: 4063151194956

MPN: 1170832

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SACC-DSI-M12FS-17CON-M16/0,11 - Device connector, rear mounting
Brand	Phoenix Contact
Categories	Circular Connectors
Country of origin	DE
Harmonized System Code	8544 4290 00
Rated voltage	30 V
Contact type	Bus
Ambient temperature	85 °C
Degree of protection (IP), mounted	IP65/IP67
Rated current In	1.5 A
Number of power contacts	0
Number of control contacts	17
Number of data contacts	0

Packing details

Packing level 1

4063151194956

Other Technical data

Locking mechanism	Other
Screened	No
Housing material	Other
With status indication	No
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Gold
Over voltage category	II
Pollution degree	3
With protective conductor	No
Min. number of insertion cycles	100
Material thread ring	Other

Description

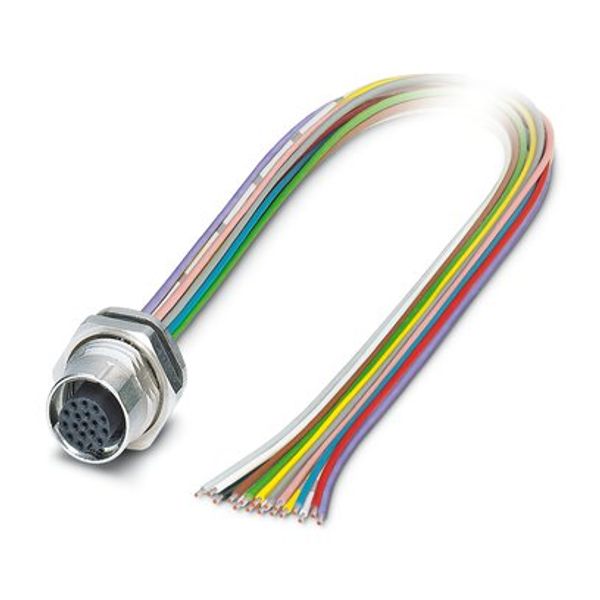

Device connector, rear mounting, Universal, 17-position, Socket, M12, A-coded, Rear mounting, M16 x 1.5, Individual wires, cable length: 0.11 m, 0.14 mm², TPE litz wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb <0.1%) 1238585
