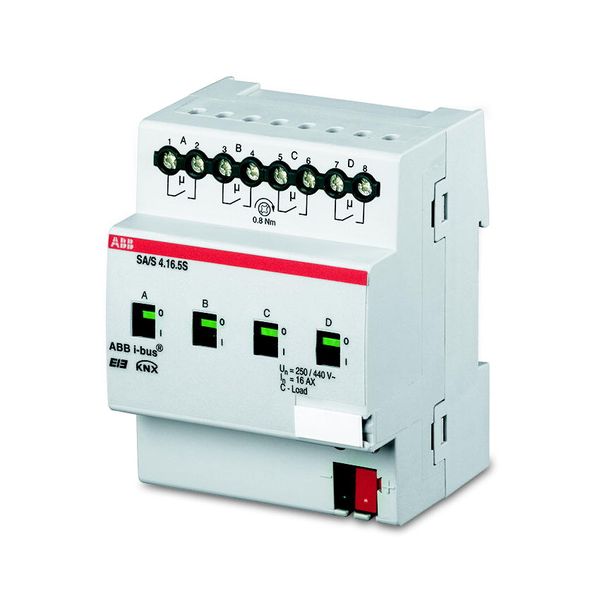

SA/S4.16.6.1 Switch Actuator, 4-fold, 16/20 AX, C-Load, Current Det, MDRC

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

393,76 €

This price is valid until 24.12.25

EAN: 4016779708319

MPN: 2CDG110113R0011

Package: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	SA/S4.16.6.1 Switch Actuator, 4-fold, 16/20 AX, C-Load, Current Det, MDRC
Brand	ABB
Categories	Bus System Devices (KNX/Modbus)
Bus system KNX	Yes
With bus connection	Yes
Bus system LON	No
Bus system KNX radio	No
Radio frequent bidirectional	No

Packing details

Packing level 1

4016779708319

Other Technical data

Mounting method	DRA (DIN-rail adapter)
Rated current	20 A
Output power	0 W
Bus system radio frequent	No
Bus system Powernet	No
Max. switching power	3680 W
Max. number of switching contacts	4
Number of digital inputs	0
Width in number of modular spacings	4
Max. switching current	20 A
Other bus systems	None
Suitable for C-load	Yes
Different phases connectable	Yes
Local operation/hand operation	Yes
Degree of protection (IP)	IP20
With LED indication	No
Modular expandability	No
Bus module detachable	No
Min. depth of built-in installation box	0 mm
Max. switching power LED	0 W

Description

Uses potential free contacts to switch 4 independent electrical loads via the ABB i-bus®. Each output has an independent load current detection. Manual operation and display of the switching state of the contacts. The 16/20AX, 16A-AC3 (C-load) device is especially suited for loads with high surge currents e.g. flourescent lighting (AX) acc. EN 60669.
