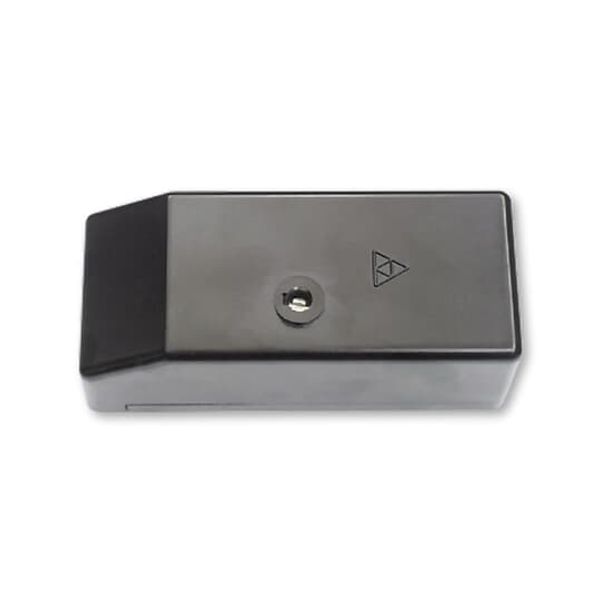

SA 10/220/1 Timer mechanical
Order only
Price (excl. VAT):
26,88 €
EAN: 8595017216572
MPN: SA 10/220/1
Package: 24
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | SA 10/220/1 Timer mechanical |
| Brand | ABB |
| Categories |
Marking Plates and Enclosures
|
| Country of origin* | CZ |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Mounting method | Surface mounted (plaster) |
| Function | Mechanical |
| Release-delay | 0,16-10 min |
| Control voltage 1 | 230-250 V |
| Type of control voltage 1 | AC |
| Type of control voltage 2 | AC |
| Frequency control voltage 1 | 50 Hz |
| Wiring system | 3 wire configuration |
| Pre-warning of switching-off | None |
| Repetitive | Repetitive |
| Voltage type of supply voltage | AC |
| Supply voltage | 230-250 V |
| Max. incandescent lamp load | 2200 W |
| Max. load fluorescent lamp | 0 VA |
| Rated switch current | 10 A |
| Current surge function selectable | FALSE |
Packing details
| Packing level 1 | 8595017216572 |
Other Technical data
| Built-in depth | 0 mm |
| Width in number of modular spacings | 0 |
| Max. switching current (cos phi = 0.6) | 0 A |
| Max. load fluorescent lamp (Duo circuit) | 0 VA |
| Max. load fluorescent lamp (parallel compensated) | 0 VA |
| Push button glow-lamp current | 0 mA |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 1 |
| Number of contacts as change-over contact | 0 |
Downloads
Description
Ovládač časový zapínací, se vzduchovým zpožďovačem, 10 A; černá
