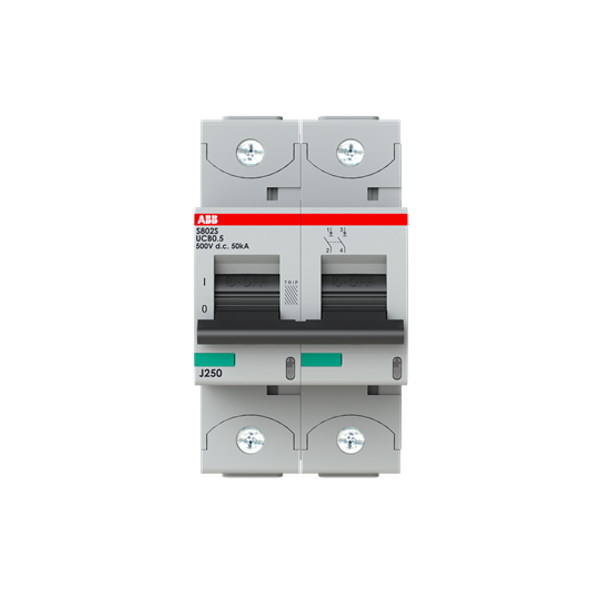

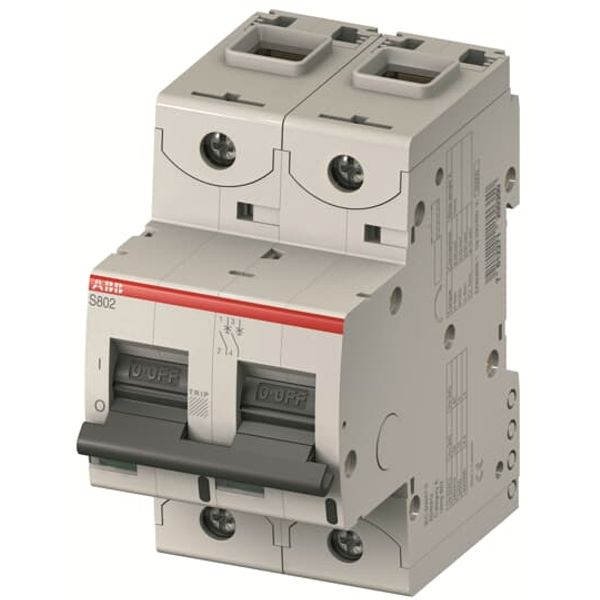

S802S-UCB0.5 High Performance MCB
Order only
Price (excl. VAT):
208,84 €
per pcs
EAN: 7612271500559
MPN: 2CCF019989R0001
Package: 1
Box: 10
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | S802S-UCB0.5 High Performance MCB |
| Brand | ABB |
| Categories |
Breakers
|
| Harmonized System Code | 8536 2010 00 |
| Rated current | 0.5 A |
| Rated voltage | 500 V |
| Release characteristic | B |
| Width in number of modular spacings | 3 |
| Number of poles (total) | 2 |
Packing details
| Packing level 1 | 7612271500559 |
| Packing level 2 | 7612271500559 |
Other Technical data
| Voltage type | DC |
| Built-in depth | 82.5 mm |
| Frequency | 50-60 Hz |
| Rated insulation voltage Ui | 1000 V |
| Current limiting class | 3 |
| Over voltage category | 4 |
| Pollution degree | 3 |
| Explosion-proof | No |
| Degree of protection (IP) | IP20 |
| Number of protected poles | 2 |
| Concurrently switching neutral conductor | Yes |
| Connectable conductor cross section solid-core | 1-50 mm² |
| Connectable conductor cross section multi-wired | 1-70 mm² |
| Ambient temperature during operating | -25-60 °C |
| Flush-mounted installation | Yes |
| Additional equipment possible | Yes |
| Rated impulse withstand voltage Uimp | 8 kV |
Downloads
Description

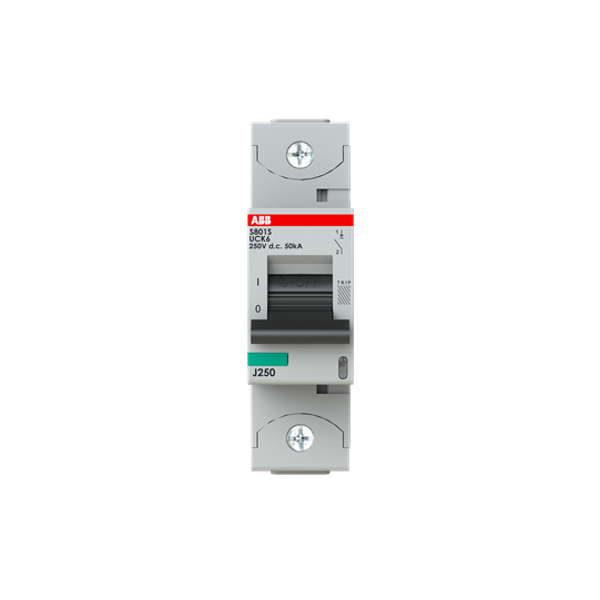

S801S-UCK6 High Performance MCB
