S-TRACK 3-phase surface-mounted track, white, 3m

Order only Not Available

Estimate delivery time to our warehouse: By request

Technical Information

Item condition	New
Manufacture name	S-TRACK 3-phase surface-mounted track, white, 3m
Brand	SLV
Country of origin*	CN
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 9001 00
ETIM	EC000101
Protection class	I
Colour	White

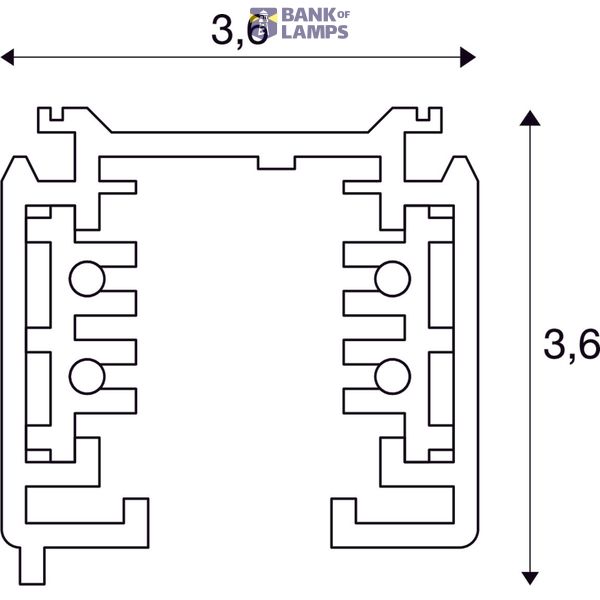

Width	36 mm
Outer diameter	0 mm
Height	36 mm
Shape	Rectangular
Built-in depth	0 mm
Built-in width	0 mm
Suitable for bus connection	No
Suitable for suspended mounting	No
Number of groups/phases	3
Bendable	No
Length	2995 mm
Material	Aluminium
Surface-mounted	Yes
Built-in	No
Max. electrical capacity per phase	3680 W
Nominal voltage	220-250 V
Surface finishing	Glossy

Packing details

Packing level 1

4024163161220

Description

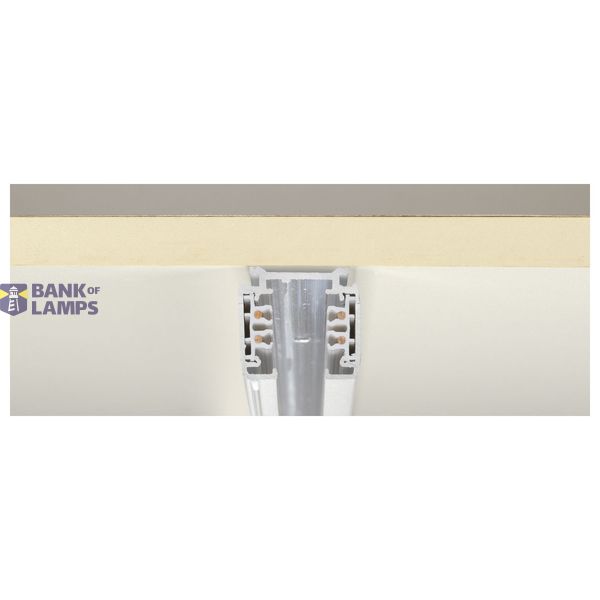

Aluminium bearing track of the 240V 3-circuit surface-mounted track system. Installation can take place through the existing holes in the profile directly onto the wall or the ceiling. The surface-mounted version of this system is available in several colours and lengths. Alternatively, there is a recessed version available too. Please note that the white colour will be changing from RAL 9010 to RAL 9016 (traffic white) on 1st October 2018. More information can be found under Product Information in the “Service” / Downloads area.
