RX 36L50 740 WS BS 3550 SP CL2 DS8 -> - LED road lighting lantern
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5037319809197
MPN: 92919278
Package: 1
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | RX 36L50 740 WS BS 3550 SP CL2 DS8 -> - LED road lighting lantern |
| Brand | Thorn |
| Categories |
Street lighting
|
| Country of origin | GB |
| Harmonized System Code | 9405 4239 00 |
| Width | 232 mm |
| Colour rendering index CRI | 70-79 |
| Length | 598 mm |
| Height/depth | 149 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK09 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP66 |
| Colour temperature | 4000 K |
| Max. system power | 55 W |
| Rated luminous flux according to IEC 62722-2-1 | 8308 lm |
Packing details
| Packing level 1 | 5037319809197, 5037319809197 |
Other Technical data
| Protection class | II |
| Lamp holder | None |
| Colour housing | Grey |
| Voltage type | AC |
| Type of control gear | LED operating device current-controlled |
| Housing material | Aluminium |
| Material cover | Glass transparent |
| With connection cable | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With control gear | Yes |
| Adjustable optics | No |
| Colour of light | White |
| With radio control | No |
| With light regulation program control | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Colour consistency (McAdam ellipse) | SDCM5 |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | Yes |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | No |
| Dimming DSI | No |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Exchangeable control gear | Yes |
| Power factor | 0.99 |
Downloads
Description

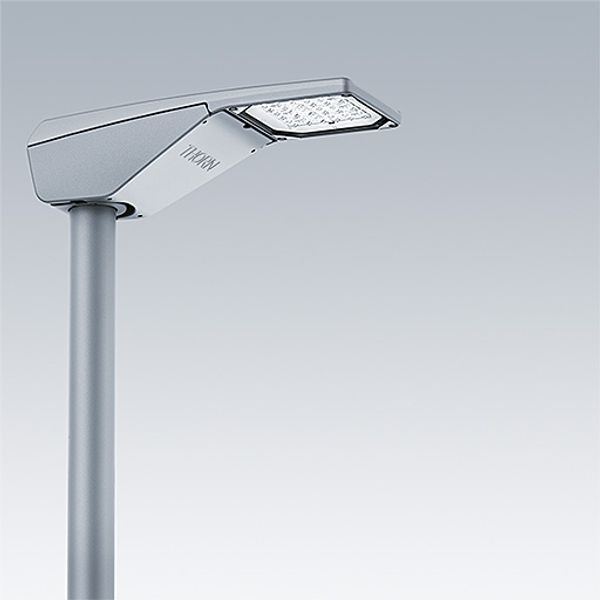

An extra small size LED road lighting lantern with 36 LEDs driven at 500mA with Wide Street optic. Programmable LED driver. Class II electrical, IP66, IK09. Housing: die-cast aluminium (EN AC-44300), powder coated textured light grey 150 (close to RAL9006). Enclosure: tempered flat glass. Screws: stainless steel, Ecolubric® treated. Post top (Ø60/76mm, tilted 0°/5°/10°) or lateral (Ø34/42/49/60mm, tilted 0°/-5°/-10°/-15°) mounting. Preset for post-top mounting at 5° Equipped with 50% power reduction circuit, effective 3 hours before and 5 hours after a calculated midnight. It can be deactivated at installation with an easily accessible internal switch. Fitted with 10kV surge protection device. Pre-wired with 8m cable for DACH market. Complete with 4000K LED.
Dimensions: 598 x 232 x 149 mm
Luminaire input power: 55 W
Luminaire luminous flux: 8308 lm
Luminaire efficacy: 151 lm/W
Weight: 9.24 kg
Scx: 0.05 m²
