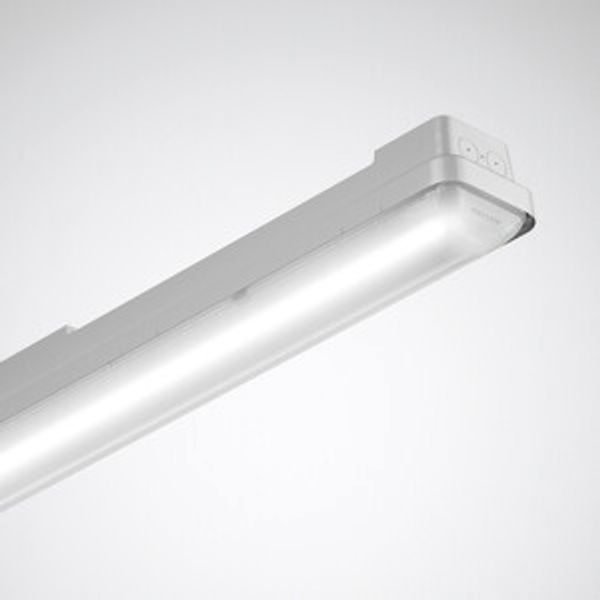

Weather-proof luminaires Oleveon Fit Grey ETDD 44W 6200lm Lambertian (L) IP66 IK03 3 SDCM 7926251

Surface-mounted weatherproof LED luminaire in IP66 with PC luminaire body and PMMA diffuser LiveLink SwarmSens slave luminaire (DMR) with integrated Bluetooth module for networking with a LiveLink SwarmSens master luminaire (DMM). Group assignment via DIP switch (64 groups) or smartphone app (255 groups) Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Advantageous with applications requiring increased mechanical stability. With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. For ceiling, wall and suspended mounting. Ceiling mounting with stainless steel fixing clips (included). Suspended mounting possible via optional accessories. Diffuser of opal translucent PMMA with inner prism structure. With Lambertian light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 25. Luminaire luminous flux and light color fixed. Luminaire luminous flux 6200 lm, connected load 44 W, maximum luminous efficiency of luminaire 141 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of PC. Colour of luminaire body light grey (RAL 7035). With clipless catch technology for protection rating-compliant and simple assembly of diffuser cover and luminaire body after electrical connection. Dimensions (L x W): 1552 mm x 102 mm, luminaire height 91 mm. Permissible ambient temperature (ta): -20 °C - +35 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,6 kg. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
