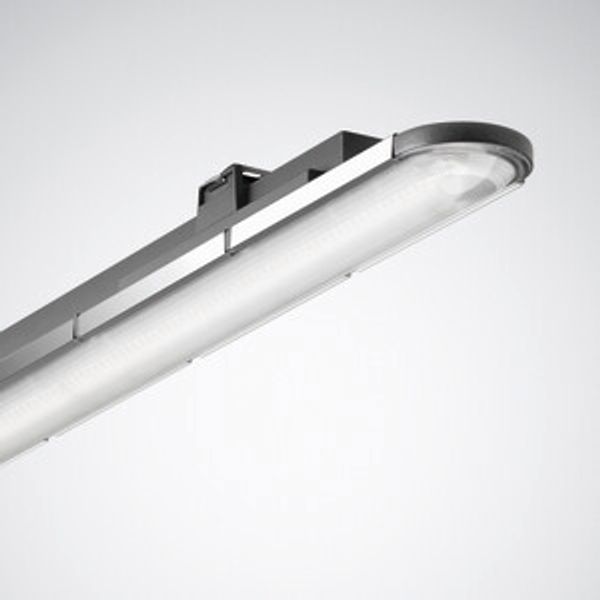

Weather-proof luminaires Nextrema Lens Anthracite ETDD 27W 4300lm Wide (W) IP66 IK08 3 SDCM 7585051

Highly efficient weather-proof LED luminaire with large temperature range. Quick-connect system type Phoenix. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for damp rooms and canopied outdoor areas. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. For ceiling, wall and suspended mounting. Mounting clips and triangular brackets for suspended mounting contained within the scope of supply. Suitable for installing to 190 VZ mounting rail. With wall mounting the luminaire must be protected from unintended disassembly via a separately ordered accessory (ZB ATL1). Polycarbonate diffuser with inner prism structure. With symmetric wide light intensity distribution. Glare evaluation according to UGR rating (EN 12464-1) < 25. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4300 lm, connected load 27 W, maximum luminous efficiency of luminaire 159 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 50 °C) = 100,000 h. Luminaire body of die-cast aluminium. Robust concept with vibration-resistant components. Colour of luminaire body anthracite, Dimensions (L x W): 1047 mm x 96 mm, luminaire height 98 mm. Permissible ambient temperature (ta): -40 °C - +50 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP66, impact resistance level in accordance with IEC 62262: IK08, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 3,0 kg. With Phoenix-type connector plug at face end. Electrical connection is made without tools. The strain relief of the connecting cable is provided via the M25 cable gland of the quick connection plug. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). Surge voltage resistance: 4kV (Class III, DIN EN 60664-1). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
