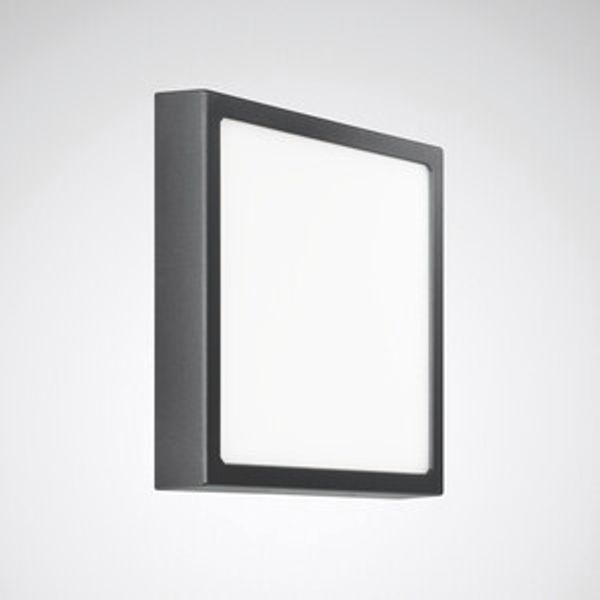

Wall and ceiling luminaire Skeo Square Multilumencolor 3 Diffuser Anthracite ETDD 18W 1800lm Lambertian (L) IP65 IK10 4 SDCM

Square decorative surface-mounted LED luminaire for wall and ceiling mounting. The wall luminaire, thanks to its optical and technical design features, harmonises with other luminaires that might be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaires for ceiling and wall mounting. With Lambertian light distribution. Luminaire luminous flux adjustable in 3 levels, light color adjustable in 2 levels. The LED system forms a solidly connected unit with the luminaire cover and can be replaced. LED system with adjustable luminaire luminous flux and adjustable light colour via DIP switch. Luminaire luminous flux 1670 lm - 1800 lm, connected load 18 W - 18 W, maximum luminous efficiency of luminaire 100 lm/W. Selectable colour temperature: 3000 / 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 4 SDCM. Mean rated service life L80(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium. Cover of highly impact-resistant PMMA, opal. Surface anthracite coated (DB 703). Dimensions (L x W): 402 mm x 402 mm, luminaire height 72 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK10. Weight: 4,0 kg. With 5-pole terminal to 2.5 mm2 for mains connection and further wiring The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 1 kV / 2 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
