Wall and ceiling luminaire Skeo R Reflector Anthracite ET 23W 1600lm 70 asymmetric wide (AB) IP65 IK05 5 SDCM

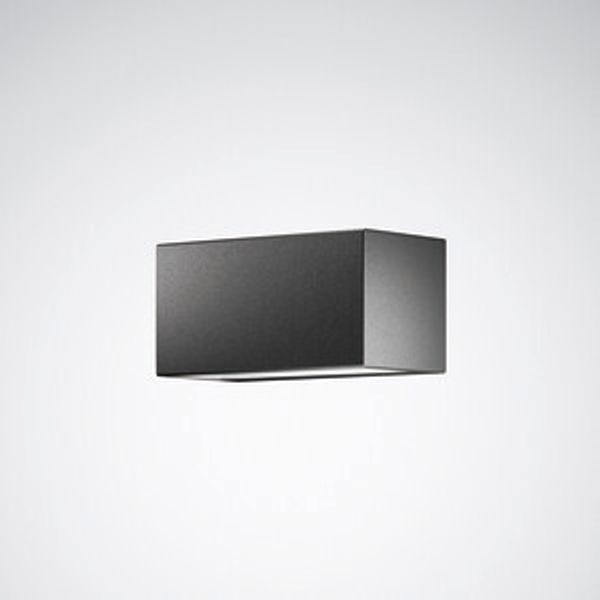

Rectangular LED wall luminaire with IP65 protection rating. The luminaire, thanks to its optical and technical design features, harmonises with other luminaires that might be used in the project. Can also be used holistically inside buildings. Surface-mounted luminaire for wall mounting. Luminaire is fixed with cast aluminium mounting plate. Specular optic of photometrically high-efficiency aluminium. Cover of transparent glass. With asymmetric wide light distribution. With asymmetrical wide light intensity distribution. Light emission can be upwards or downwards with appropriate mounting of the luminaire. Luminaire luminous flux and light color fixed. Luminaire luminous flux 1600 lm, connected load 23 W, maximum luminous efficiency of luminaire 70 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. Luminaire body of die-cast aluminium. Luminaire body anodised, primed and powder-coated. Surface anthracite coated (DB 703). On request the luminaire body can be provided without added cost in the following colours: black textured (Akzo Nobel 8118669, similar to RAL 9005, V5), white textured (Akzo Nobel 8158870, similar to RAL 9016, V6), grey textured (Akzo Nobel 8129595, similar to RAL 9006, V7). Other colour variants are available for an additional charge in accordance with the RAL or DB colour code. Dimensions (L x W): 200 mm x 100 mm, luminaire height 100 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK05. Weight: 1,3 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 2 kV / 1 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
