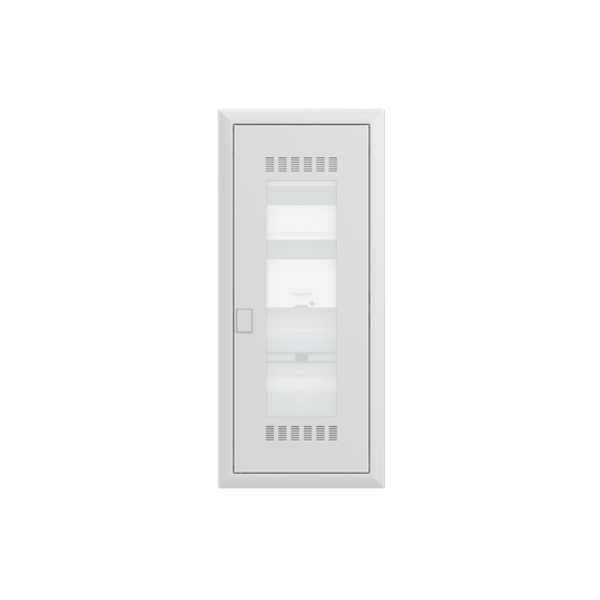

UK662CWC Combi Unit , 872 mm x 384 mm x 97 mm, Flush mounting, 24 SU, IP30, Single image 1
ABB

UK662CWC Combi Unit , 872 mm x 384 mm x 97 mm, Flush mounting, 24 SU, IP30, Single

Только заказ
Цена (без НДС):
446,18 € за шт.
Цена действительна до 31.12.30
EAN: 4011617314523
MPN: 2CPX031452R9999
Упаковка: 1
Ориентировочное время доставки на наш склад (приблизительно): По запросу

Technical Information

Состояние товара Новый
Название производителя UK662CWC Combi Unit , 872 mm x 384 mm x 97 mm, Flush mounting, 24 SU, IP30, Single
Бренд ABB
Категории Small Distribution Boards

Сведения об упаковке

Уровень упаковки 1 4011617314523

Описание

Combi Unit, series UK600, Expansion option: Lateral and bottom, for the internal use, with closed doorframe and door, class of protection II (double insulated), degree of protection IP30, applicable standards: EN 60670-24, IK code 7, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 850°C, Powder-coated, in RAL 9016, enclosure out of thermoplast, with frame and ventilated wifi door, door out of sheet steel, in RAL 9016, with TIP-in closure, door opening angle 120 degree, door hinge right or left, cable entry on top via cable entry slide part is pre-punched, on bottom via cable entry slide part is pre-punched, on side via pre-punched, rear wall pre-punched, dimensions in mm (H x W x D): 872 x 384 x 97, Shutter frame dimensions in mm (H x W x D): 872 x 384 x 9, Space units 24, Row distance in mm: 125, covers out of Plastic, 90 degree press and turn closure, with N/PE Quick-terminal, cable fastening rail integrated, assembled with device carrier, segregation wall and perforated sheet steel mounting plate, device support removable
