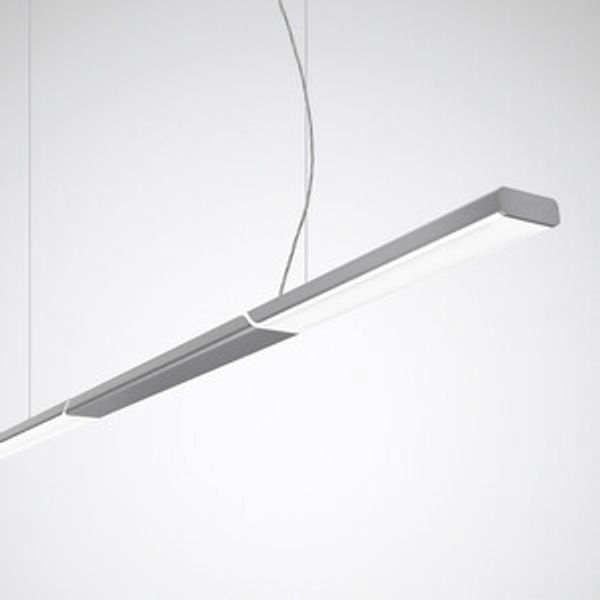

Suspended luminaires Parelia HCL Prisms Aluminium ETDD8 81W 12400lm Wide reduced glare UGR19 (W19) IK02 3 SDCM

Exclusive suspended LED luminaire with direct and indirect luminous flux component and laterally visible light line. For use as central continuous line luminaire. With integrated LiveLink sensor for connecting to a LiveLink control unit, for daylight-dependent control and presence detection. LiveLink sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI devices. Square detection zone, detection squares for presence max. 4 m x 4 m (16 m2) / radial max. 4 m x 4 m (16 m2) / tangential max. 6 m x 6 m (36 m2) at recommended mounting height of 2,8 m, permissible mounting height 2.5 m to 4 m. For use as suspended mounting as part of a continuous line in combination with single luminaires Wire suspension included in the scope of supply (2000 mm). Standard suspension length: 1000 mm. In addition to standard mounting parallel to the window front, the luminaire can also be planned and installed parallel to the building axis of the building. An H-LM luminaire type from this series only functions in combination with an H-L type luminaire. With inner highly efficient microprismatics CDP-I. Clear cover with lateral light emission edge. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. VDU workstation-compliant in accordance with 12464-1 The side arrangement of the light modules means that reflections on shiny surfaces are almost completely avoided. With HCL equipment for controlling the light color by means of a separate control unit (DT8). {Reference (Object) not found: tb247468353361581}. Luminaire luminous flux 11800 lm, connected load 81 W, maximum luminous efficiency of luminaire 160 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel.End caps of PC. Surface coated silver-grey (RAL 9006). Dimensions (L x W): 1504,8 mm x 102 mm, luminaire height 37 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK02, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 5,3 kg. Transparent connection cable included in the scope of supply (1000 mm). With two electronic control gear units, digitally dimmable (DALI DT8). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Number of occupied DALI devices: 5. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
