Surface-mounted luminaire Solvan Flow D HCL Raster Aluminium ETDD8 34W 4000lm Wide reduced glare UGR19 (W19) IK03 3 SDCM

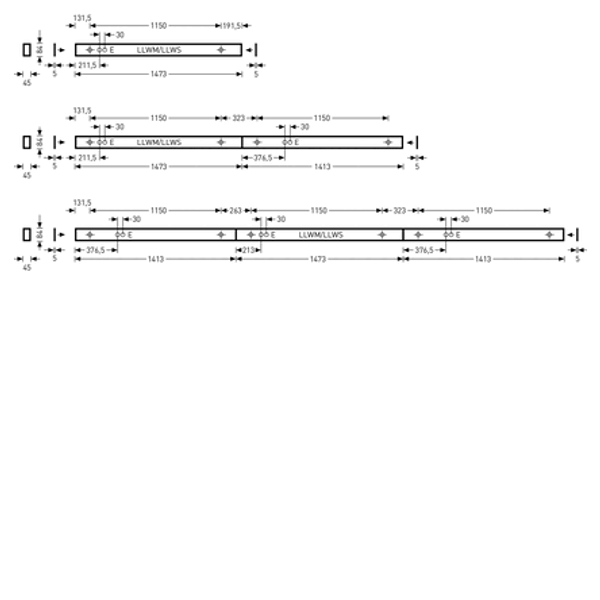

Surface-mounted LED luminaire for single use or trunking applications. With integrated LiveLink sensor for connecting to a LiveLink control unit, for daylight-dependent control and presence detection. LiveLink sensor IR Micro for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Electrical supply via the DALI interface of the control unit. Occupies 2 DALI devices. Square detection zone, detection squares for presence max. 4 m x 4 m (16 m2) / radial max. 4 m x 4 m (16 m2) / tangential max. 6 m x 6 m (36 m2) at recommended mounting height of 2,8 m, permissible mounting height 2.5 m to 4 m. Surface-mounted luminaire for ceiling mounting. With separately ordered installation accessories also suitable for use in strip ceilings (SFlow ZBP L2). For strip ceilings in module 100. Also suitable for suspended mounting by means of accessories to be ordered separately (ZS1P 2000). Optical system with micro reflector technology (MRW) with highly efficient aluminised reflector chambers of plastic for high glare reduction and efficiency. Discreet lateral light emission over the complete luminaire length. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 1500 cd/m2 for beam angle above 65° all-round. With HCL equipment for controlling the light color by means of a separate control unit (DT8). Luminaire luminous flux 4000 lm, connected load 36 W, maximum luminous efficiency of luminaire 118 lm/W. Light colour variable (warm white - daylight white), correlated colour temperature (CCT) variable (2700 K - 6500 K), general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated silver-grey (RAL 9006). Dimensions (L x W): 1473 mm x 84 mm, luminaire height 57 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 4,4 kg. With electronic control gear unit for switching, dimming and controlling the light colour using DALI Device Type 8-enabled control unit. Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
