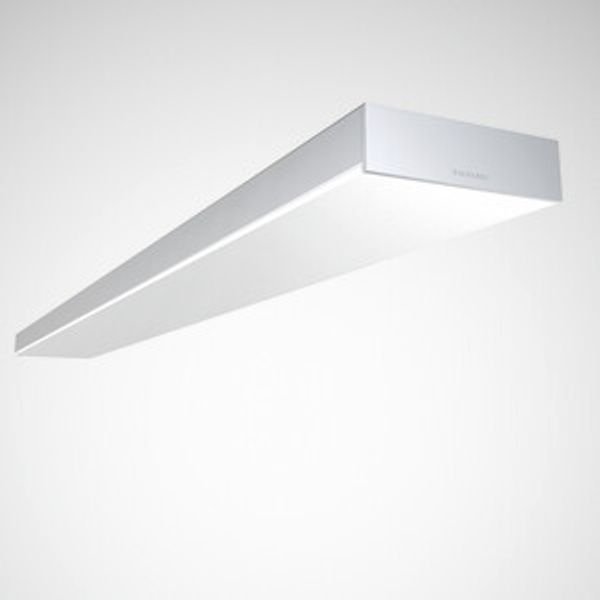

Surface-mounted luminaire Opendo D Lens Silver ETBLE 32W 4200lm Wide reduced glare UGR19 (W19) IK03 3 SDCM 8415863

Rectangular surface-mounted LED ceiling luminaire with full-surface, borderless PMMA cover. With CASAMBI module for integration into a wirelessly controllable mesh network of up to 250 divices. The system is commissioned using the Casambi app (iOS and Android). Version with integrated presence and daylight sensor. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Surface-mounted luminaire for ceiling mounting in indoor rooms. Verwendung als Lichtbandleuchte auf Anfrage möglich. With an internal microprismatic cover and an opal PMMA cover smooth on room side. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4200 lm, connected load 32 W, maximum luminous efficiency of luminaire 131 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated silver-grey (RAL 9006). Dimensions (L x W): 1408 mm x 161 mm, luminaire height 48 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 4,7 kg. With Bluetooth Low Energy operating device (BLE). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
