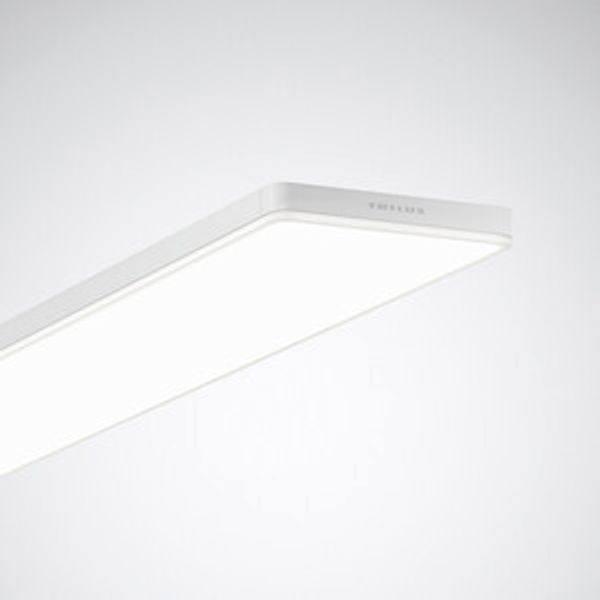

Surface-mounted luminaire Lunexo D Prisms White ETDD 58W 5200lm Wide reduced glare UGR19 (W19) IK03 3 SDCM

Exclusive rectangular surface-mounted LED luminaire with rounded corners and visible light edge. With integrated LiveLink WiFi control unit and LiveLink sensor for daylight-dependent control and presence detection as well as WLAN module for reliable commissioning and operation (WPA2 encryption). Predefined room configurations (Use Cases) with all planning-relevant data enable simple, quick commissioning. Control of up to 64 DALI devices. Commissioning is carried out with the LiveLink Install commissioning app for tablet PCs. LiveLink sensor MSensor G3 PIR 5DPI for daylight-dependent control and presence detection. Constant light control with switch-off function with sufficient daylight. Passive infrared presence sensor, with high-sensitivity multi-segment pyro-sensors, settable switch-off delay time, optionally in automatic mode (automatic on, automatic off) or semi-automatic mode (automatic off, manual on). Special IQ mode for automatic adaptation of delay time to room use. Connection and electrical supply via the DALI interface of the LiveLink control unit. Number of occupied DALI devices: 5. Detection range: Ø 4,5 m, Mounting height 2,5 m - 5 m. Surface-mounted luminaire for ceiling mounting in indoor rooms. For single luminaire applications. With inner CDP-I microprismatics. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. VDU workstation-compliant in accordance with 12464-1 Luminaire luminous flux and light color fixed. Luminaire luminous flux 5200 lm, connected load 58 W, maximum luminous efficiency of luminaire 90 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of extruded aluminium profile. End caps of die-cast aluminium. Surface coated white (RAL 9016). Dimensions (L x W): 1500 mm x 200 mm, luminaire height 45 mm. Permissible ambient temperature (ta): -20 °C - +. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 10,0 kg. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Number of occupied DALI devices: 1. The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
