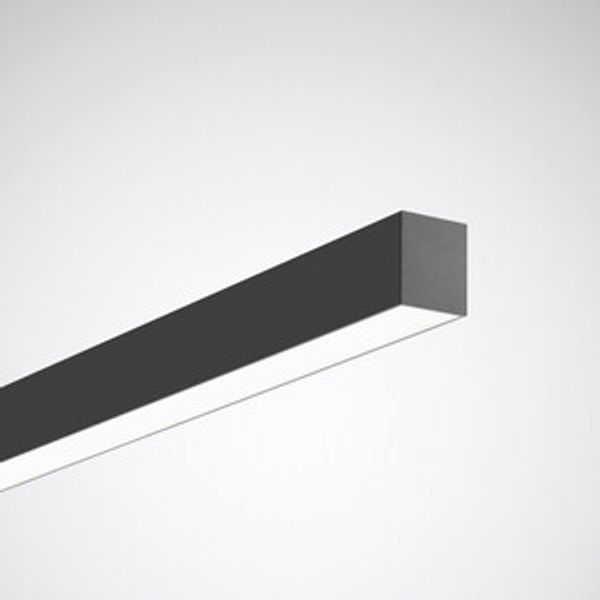

Surface-mounted luminaire Finea D Diffuser Black rectangular ET 32W 3454lm Lambertian (L) IK03 3 SDCM

Individual luminaire of the ceiling surface-mounted light channel system for architectural lighting. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. Systemically relevant accessories such as installation and ceiling mounting clips as well as end caps are included in the scope of delivery. For ceiling mounting indoors. With Lambertian light distribution. Luminaire luminous flux and light color fixed. Luminaire luminous flux 3454 lm, connected load 32 W, maximum luminous efficiency of luminaire 108 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Channel elements of extruded aluminium profile, end caps of plastic (PMMA). Surface coated black (RAL 9005). Dimensions (L x W): 1406 mm x 70 mm, luminaire height 75 mm. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 2,9 kg. Mains connection is achieved using a 5-pole connection terminal to 1.5 mm2 . With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
