Surface-mounted luminaire Atirion Reflector White ET 38W 4700lm asymmetric Wide (AW) IK02 3 SDCM

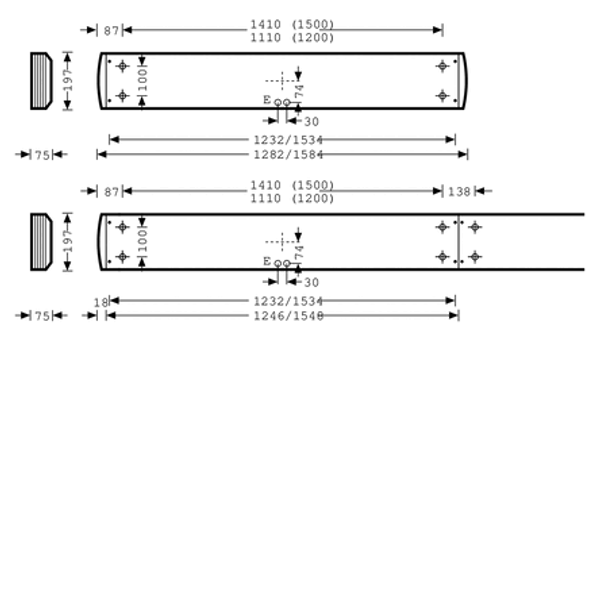

Surface-mounted luminaire for single luminaire or continuous line applications. For mounting to ceilings and overhangs indoors. With wallwasher optic. With asymmetric wide light distribution. Louvre mounting and self-actuating electrical earthing via sliding contact catches. Louvre can be hinged downwards and unhooked on both sides without tools. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4700 lm, connected load 38 W, maximum luminous efficiency of luminaire 124 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 35,000 h, mean rated service life L70(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Flat profile design, underside angled at 55%. Dimensions (L x W): 1548 mm x 197 mm, luminaire height 75 mm. Please order end caps for individual luminaires or continuous lines separately. Luminaire body with integral coupling profiles for precise alignment of continuous lines with non-interrupted louvres. Permissible ambient temperature (ta): -20 °C - +. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK02, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 5,0 kg. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
