Recessed luminaires Creavo C Lens White ETDD 30W 5000lm Wide reduced glare UGR19 (W19) IK03 3 SDCM 7635451

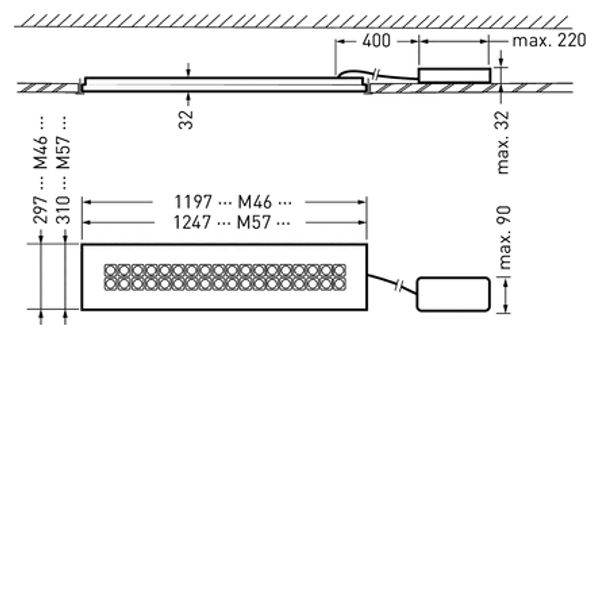

Rectangular lay-in LED ceiling luminaire with light elements consisting of lens systems and cubic screening elements with high efficiency. Version M46 (300 mm x 1200 mm). Luminaire use is specially designed for lay-in installation in system ceilings with exposed grids. Further information and data regarding luminaire installation and fixing can be found in the installation instructions. The optical system with a precisely coordinated combination of LED lenses and anti-glare elements provides very high visual comfort with very high photometric performance. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. Suitable for VDU workstations according to EN 12464-1 via limited luminance L ≤ 3000 cd/2 for beam angle above 65° all-round. Luminaire luminous flux and light color fixed. With 36 light elements, rectangular version (2 x 18). Luminaire luminous flux 5000 lm, connected load 30 W, maximum luminous efficiency of luminaire 167 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 100,000 h, mean rated service life L90(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). Screening cubes silver-grey, with fine surface structure (RAL 7001). The screening cubes can be realised in further RAL colours on request. The colour of the screening cubes has no significant impact on the luminaire’s photometric properties. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK03, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 5,5 kg. Polarity-protected rapid connection with mains through-wiring up to Ø 2.5 mm2. Connection of the ballast unit to the luminaire (Plug ‘N Play). The luminaire’s packaging concept facilitates separate removal of the control gear unit for pre-assembly, leaving the remaining luminaire components protected until final assembly. With external operating device, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Control gear unit is open-circuit proof and protected against faulty connection, short circuit, overload and overtemperature. Output ripple of the control gear unit ≤ 4 % for effective control of the LED system and for flicker-free light. The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. The luminaire is part of a range of recessed, surface-mounted and suspended luminaires with a harmonised appearance. Project-specific versions with varying luminaire characteristics are possible on request. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
