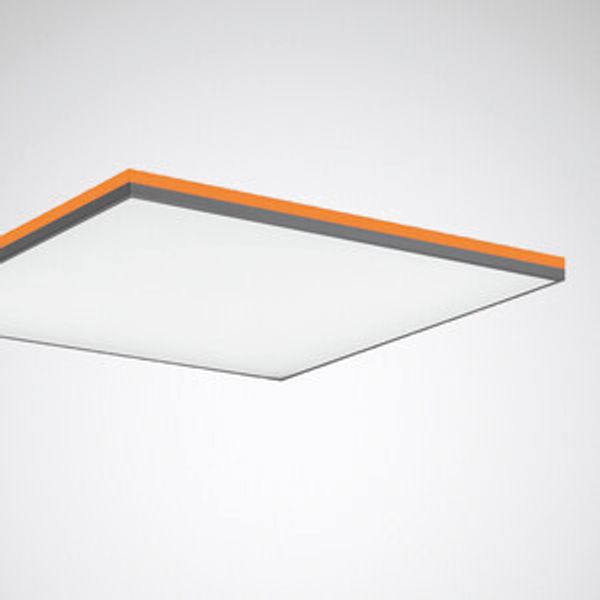

Recessed luminaires Belviso C Prisms White ETDD 26W 4000lm Wide reduced glare UGR19 (W19) IK06 3 SDCM 6110751

LED semi-recessed luminaire with CDP microprismatic cover. Version M73 (600 mm x 600mm). With coloured light frame for individual, emotional lighting designs. With orange light frame. Can be universally used in cut-out recess openings and in system ceilings with concealed or exposed grids. Installation in system ceilings with asymmetric, concealed grids on request. Version M73. For system dimension 600 mm x 600 mm. For ceiling cut-outs 580 mm x 580 mm, Recess depth ≥ 65 mm. For installation in cut-out recess openings and in system ceilings with concealed grids, a separately ordered set of Belviso C2 CBB fixing brackets is required. With highly efficient CDP microprisms. With symmetric limited wide light distribution. Glare evaluation according to UGR rating (EN 12464-1) < 19. VDU workstation-compliant in accordance with 12464-1 Completely harmonious light effect due to homogeneously illuminated light emission. Luminaire luminous flux and light color fixed. Luminaire luminous flux 4000 lm, connected load 26 W, maximum luminous efficiency of luminaire 154 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 25 °C) = 70,000 h, mean rated service life L85(tq 25 °C) = 50,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body sheet steel. Surface coated white (RAL 9016). With all-round, exclusive light frame. Dimensions (L x W): 595 mm x 595 mm, luminaire height 72 mm. Permissible ambient temperature (ta): -20 °C - +. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20, impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 650 °C. Weight: 8,2 kg. With 5-pole terminal to 2.5 mm2 for mains connection and further wiring. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire can be equipped with the Monitoring Ready (MOR) functionality on request. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
