Post-top luminaires US 9711 CLO (normal) Lens Grey ET 36W 4600lm 70 asymmetric wide (AB7L) IP66 IK09 5 SDCM

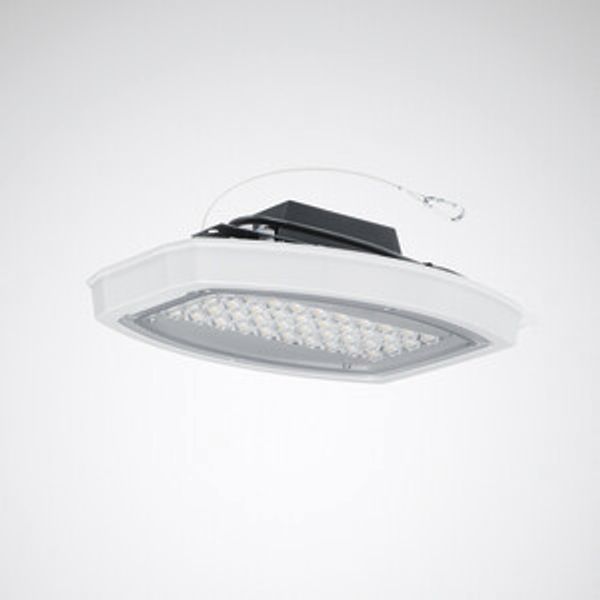

LED conversion kit for post luminaires 9711... . With power reduction via control phase. Switching off one control phase implements reduction of luminaire luminous flux to 50%. With power reduction via control circuit. Switching off a control circuit causes the luminaire luminous flux to be set to 50%. For quick and simple conversion of existing luminaires with older constructions to efficient LED MLT post luminaires. Complete unit with LED system, control gear unit, optical system with cover and connection components. Tool-free mounting after removal and disassembly of the existing assemblies in accordance with mounting instructions. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With asymmetric wide light distribution. For road illumination in compliance with M5 and M6 lighting classes with road width to mounting height ratio of 0.4 to 0.8. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). LED module of die-cast aluminium housing with integrated LEDs and optical systems. Luminaire luminous flux 4600 lm, connected load 34,00 W, maximum luminous efficiency of luminaire 135 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 70. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Versions with 3-level switch for adjusting various luminous flux options on request. Weight: 3,5 kg. With electronic control gear unit, switchable The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
