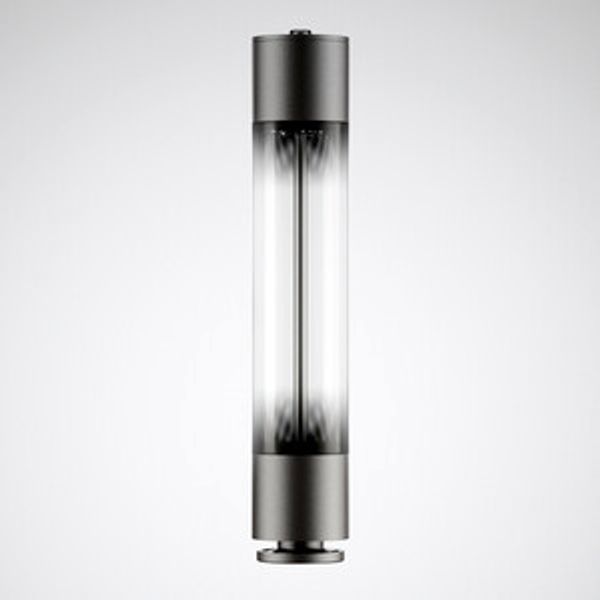

Pillar luminaires CS19 CLO (normal) Lens Anthracite ET 23W 2200lm 70 rotationally sym. wide (RB6L) IP65 IK05 5 SDCM

Luminaire head of the modular, decorative LED light column system. Version with printed PMMA diffuser. With SLR (Smart Lighting Ready) equipment for retrospective integration of components for light management systems. The standardised Zhaga-compliant base is attached to the luminaire head at the top. The luminaire is designed for the D4i standard and Zhaga/D4i certified. The column system is designed for applications in areas with terrain category 1, up to wind zone 4. For post-top mounting onto compatible system supporting column. Compatible system supporting column as separate unit in various lengths, or alternatively available with baseplate or underground support. The steel supporting columns have a diameter of 193,7 mm. Optical system with Multi-Lens Technology. Luminaire optic consists of highly efficient, UV and temperature-resistant lens systems. With rotationally symmetric wide light distribution. Further beam characteristics are available for flexible adaptation to customer-specific lighting tasks. Luminaire luminous flux and light color fixed, with luminous flux stabilization at end of life (CLO). Luminaire luminous flux 2200 lm, connected load 22 W, maximum luminous efficiency of luminaire 100 lm/W. Light colour warm white, correlated colour temperature (CCT) 3000 K, general colour rendering index (CRI) Ra > 70. Colour locus tolerance (initial MacAdam) ≤ 5 SDCM. Further LED light colours available on request. Mean rated service life LCLO(tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Luminaire body of die-cast aluminium Ø 193,7 mm. Colour anthracite (DB 703). Sea weather-suitable coating on request. Luminaire height 1044 mm, Luminaire diameter Ø 193,7 mm. Other colours and anti-graffiti coating on request. Cover cylinder of PMMA, clear. Luminaire body can be steplessly rotated through 360 °. There are no visible screws in the connection area between supporting column and luminaire head. A design gap visually emphasises the modular character of the light column system. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK05. Windage area fw 0,190 m2. Weight: 15,2 kg. Wired ready for connection with freely suspended electrical mains cable. With electronic transformer, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Surge voltage resistance Differential Mode / Common Mode: 6 kV / 10 kV. The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
