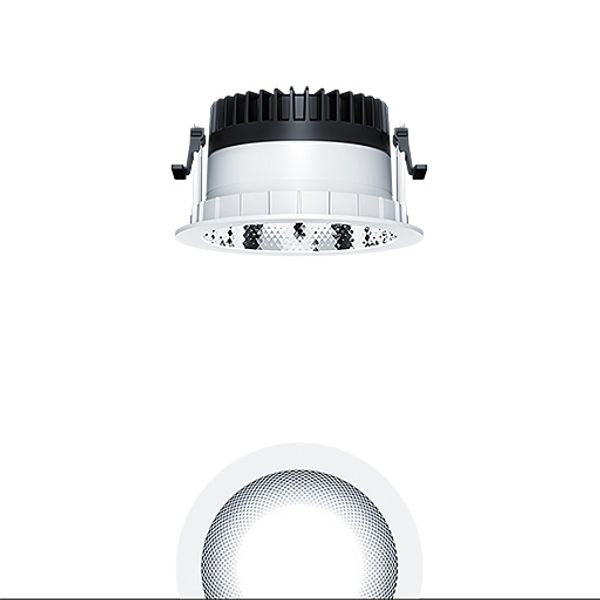

LED ceiling-recessed luminaire

LED ceiling-recessed luminaire (pre-assembled luminaire) R150, with symmetrical, wide beam light distribution (69 °), maximum luminaire efficiency and optimum downlight technology; high sustainability due to consistent, maximum modular design and interchangeable components. Replaceable LED module, symmetrical, wide beam light distribution, Colour rendering Ra > 80, colour temperature 4000 K; Chromaticity tolerance (initial MacAdam): 2; Luminaire input power: 14.1 W; Luminaire luminous flux: 2010 lm; Luminaire efficacy: 143 lm/W; Rated median useful life: L80 100000 h at 25 °C + L90 50000 h at 25 °C, with separate plug-in LED converter, Slave luminaire for DALI control (DALI only) with DC functionality, adjustable 1-100 %, NFC configurable, SwitchDIM compatible; high-quality reflector unit fixed to modular LED lighting chamber by twist-and-lock mechanism; high-efficiency LED lighting chamber integrated in optimised, passive thermal management made of high-quality heat-dissipating polycarbonate reflector/trim made of high-quality, UV-resistant polycarbonate; reflector: faceted, aluminized, highly reflective, iridescence-free; trim: white; mounting surround made of polycarbonate; white; protection rating: IP54_IP20; luminaire wired with halogen-free leads; electrical connection: 5-pole connector terminal; Through-wiring possible; mains voltage: 220-240 V / 0/50/60 Hz, for use with central battery 220-240V DC; ; Installation: tool-free quick installation using antislip spring clips in ceilings of thickness 1-40 mm (depending on the luminaire variant) due to interchangeable retaining bars; luminaire unit can be fitted quickly without tools using twist-and-lock mechanism; ceiling cut-out: 150 mm, recess depth: 100 mm; weight: 0.56 kg; For office applications in accordance with EN12464 (UGR<19 reflector type sputtered aluminium)
