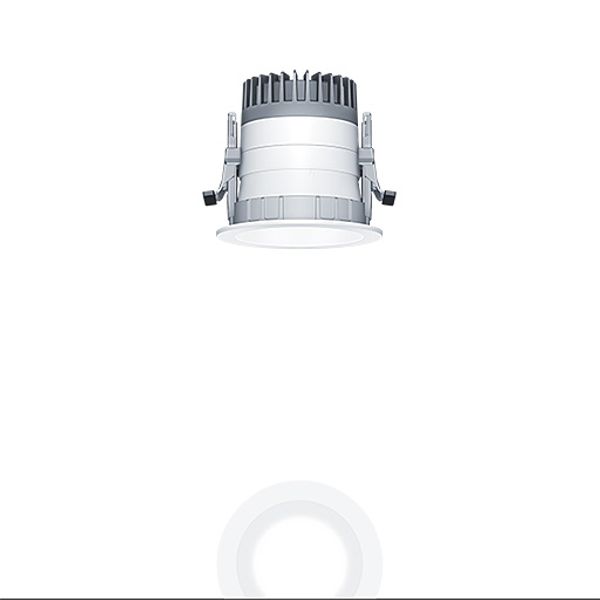

LED ceiling-recessed luminaire

LED ceiling-recessed luminaire (pre-assembled luminaire) R100, with symmetric wide beam light distribution (51 °) with maximum luminaire efficiency and optimum downlight technology; high sustainability due to consistent, maximum modular design and interchangeable components. Replaceable LED module, Colour rendering Ra > 80, colour temperature 3000 K; Chromaticity tolerance (initial MacAdam): 2; Luminaire input power: 8.1 W; Luminaire luminous flux: 840 lm; Luminaire efficacy: 104 lm/W; Rated median useful life: L80 100000 h at 25 °C + L90 50000 h at 25 °C, with separate plug-in LED converter, switchable luminaire ; high-quality reflector unit fixed to modular LED lighting chamber by twist-and-lock mechanism; high-efficiency LED lighting chamber integrated in optimised, passive thermal management system made of recycled diecast aluminium reflector/trim made of high-quality, UV-resistant polycarbonate; reflector: white painted finish; trim: white; mounting surround made of polycarbonate; grey; protection rating: IP54_IP20; luminaire wired with halogen-free leads; electrical connection: 3-pole connector terminal; Through-wiring possible; mains voltage: 220-240 V / 0/50/60 Hz, for use with central battery 220-240V DC; ; Installation: tool-free quick installation using antislip spring clips in ceilings of thickness 1-40 mm; luminaire unit can be fitted quickly without tools using twist-and-lock mechanism; ceiling cut-out: 100 mm, recess depth: 120 mm for ceiling thicknesses 1-25 mm; recess depth: 130 mm with ceiling thicknesses of 1-40 mm weight: 0.45 kg; For office applications in accordance with EN12464 (UGR<19 reflector type sputtered aluminium)
