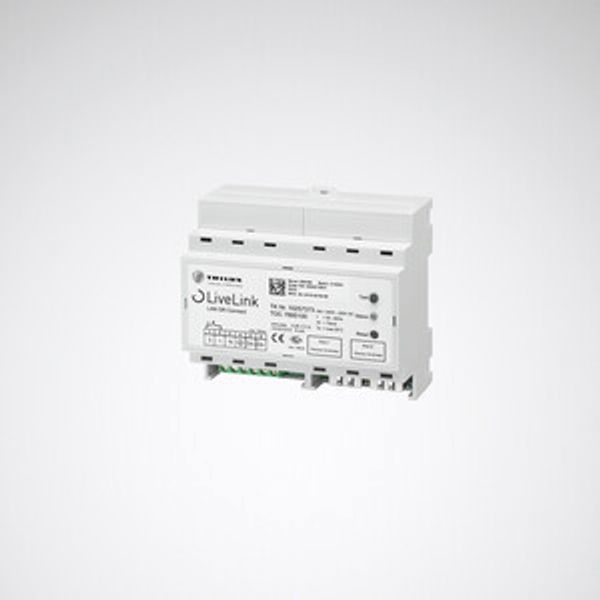

LiveLink I Plug-in terminal 7895100

Dali control gear unit with integrated RJ45 LAN module. The control gear unit with Connect equipment enables master-slave networking of up to 10 control gear units via LAN. For the connection, commissioning and operation of LiveLink sensor units, LiveLink DALI push-button couplers and DALI luminaires. The control gear unit can manage up to 64 DALI devices. Predefined room configurations (Use Cases) with all planning-relevant data enable simple, quick commissioning. Addressing of luminaires and LiveLink system components is via a graphic user interface (iOS/Android app) for Tablet PCs. Fully automatic (automatic On/Off) or semi-automatic (automatic Off only) presence detection, freely programmable push-button functions. The Connect equipment enables either individual single room control per control gear unit or overall control via a master-slave circuit, e.g. for controlling sports halls. The control gear unit with integrated 230 V power supply unit is designed for installation on a DIN rail (TS35). Commissioning with the LiveLink Install app via is performed via Wi-Fi connection (WPA2 encryption) using a tablet PC. With DALI interface for connecting luminaires, LiveLink sensors and push-button couplers. Operation optionally via tablet PC, smartphone or installation buttons. RJ45 socket for integration into the on-site network with LAN or Wi-Fi router. Operation optionally via tablet PC, smartphone or installation buttons. For commissioning and operation with a tablet PC or smartphone, the control gear unit must be connected to a Wi-Fi-capable router (at least according to IEEE 802.11b).
