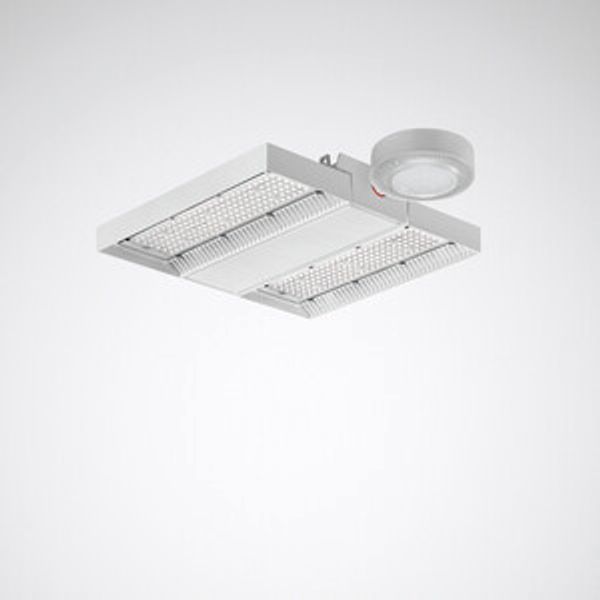

High bay luminaires Mirona Fit Lens White ETDD 78W 13100lm Wide (W) IP65 IK06 3 SDCM

Robust LED highbay luminaire. With PIR sensor and wireless control unit, ZigBee mesh network. The system is commissioned with the LiveLink Basic Wireless Install app (iOS and Android) for smartphones. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. With limited surface temperature, suitable for use in fire hazardous areas according to DIN EN 60598-2-24. Suitable for ceiling and suspended mounting with optional accessories. Optical system consists of a PC lens optic. With symmetric wide light intensity distribution. Luminaire luminous flux and light color fixed. LED system consists of 2 LED modules mounted to aluminium support. Luminaire luminous flux 13100 lm, connected load 78 W, maximum luminous efficiency of luminaire 168 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 50 °C) = 70,000 h. Robust diecast aluminium body with integrated cooling ribs. Surface coated white (RAL 9016). Dimensions (L x W): 450 mm x 342 mm, luminaire height 63 mm. Permissible ambient temperature (ta): -30 °C - +50 °C. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP65, impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. Weight: 3,8 kg. With electronic transformer, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
