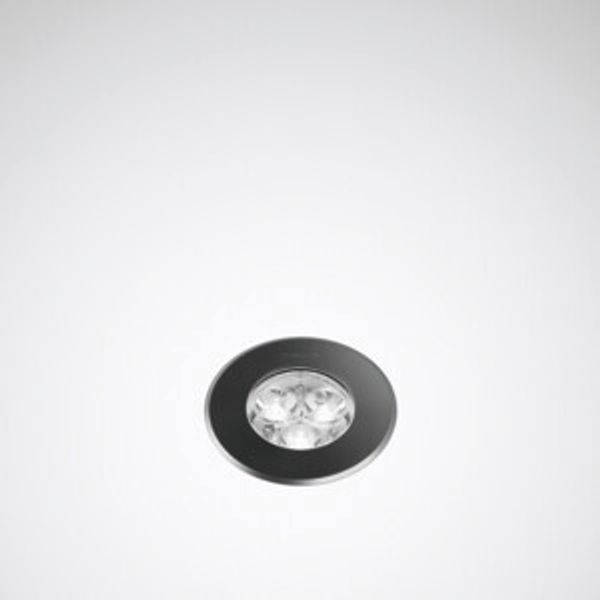

Ground-recessed luminaires Lutera 90 Lens Black ETD 5W 500lm rotationally sym. narrow (RE) IP68 IK10 3 SDCM 6376857

LEDGround-recessed spotlight for accent lighting, walkable and driveable. for ground recessing. On-site, a foundation suitable for the load with adequate drainage must be ensured. Please order ground recessing bowl separately as accessory. With rotationally symmetric narrow light distribution. beam angle 10°. Luminaire luminous flux and light color fixed. LED system configured with 3 LEDs. Luminaire luminous flux 500 lm, connected load 5 W, maximum luminous efficiency of luminaire 100 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Further LED light colours available on request. Mean rated service life L80(tq 35 °C) = 50,000 h. Spotlight housing of die-cast aluminium, colour deep black, similar to RAL 9005, powder-coated. With fitted stainless steel cover ring, round. (RAL 9005). Cover of 15 mm thick, hardened glass, clear. Can be rolled over to 2000 kg. Ground recessing bowl of weather-resistant PVC tube. With luminaire mounting ring of glass-fibre reinforced PA6. Safety class (EN 61140): II, protection rating (DIN EN 60529): IP68, Protection rating of lamp compartment: IP68. impact resistance level in accordance with IEC 62262: IK10. Protection rating of lamp compartment: IP68. Weight: 0,6 kg. Wired ready for connection. With connection cable fed outwards, 2 x 1.5 mm2, sealed with appropriate protection rating. Inner connection compartment sealed with epoxy resin. The luminaire is suitable for operation on a 230V direct voltage supply grid (DC). With electronic transformer, dimmable. Dimmable with leading edge dimmer. Surge voltage resistance Differential Mode / Common Mode: / . The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol.
