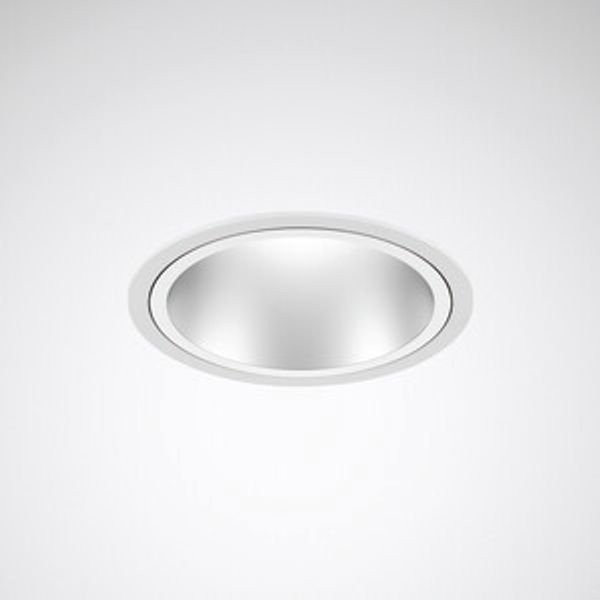

Downlights Sonnos Lens White around ETDD 21W 2200lm Emergency light Extreme Wide Flood (XFL) IK06 3 SDCM 9002015719

Compact LED downlight with round construction. Recessed downlight with edge for plasterboard ceiling openings. Tool-free ceiling installation via rapid-mounting tighteners. Ceiling cut-out dimensions Ø 150 mm. Refurbishing plates for fitting in existing ceiling apertures with unsuitable dimensions are available as separately ordered accessories. Recess depth >= 130 mm, Luminaire height 133 mm. With semi-specular vaporised plastic reflector. Colour of ceiling mounting frame: white. Symmetric light distribution characteristic and beam spread: 80° Extreme Wide Flood. Light control via diffuser/reflector. Direct glare limitation in accordance with UGR 22. With one LED module. Luminaire luminous flux 2.200 lm, Connected load 21,0 W, luminous efficiency of luminaire 105 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra= 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM corresponds to very high colour uniformity of the LEDs in application. Nominal service life L90 (tq 25 °C) = 50,000 h, nominal service life L80 (tq 25 °C) = 100,000 h. The light source is replaceable according to the ecodesign requirements (VO (EU) 2019/2020). Permissible ambient temperature (ta): -20°C - +25°C. Housing and heat sink made of die-cast aluminium. Safety class (EN 61140): I, protection rating (DIN EN 60529): IP20. Protection rating on room side: IP54. Impact resistance level in accordance with IEC 62262: IK06, testing temperature of wire glow test in accordance with IEC 60695-2-11: 850 °C. With 5-pole connection terminal to 2.5 mm² and separate 5-pole mains through-wiring box. Mains connection of control unit is with a connection terminal. With electronic ballast, digitally dimmable (DALI). Control gear unit according to DALI-2 standard (EN 62386). Luminaire is switchable and dimmable by means of touch functionality via DALI control terminals (Touch DIM). (CCT) 2700-6500 K Possible dimming range: 1...100%. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). Live-Link ready. In emergency light version with single battery system, nominal operation time 3 hours. The luminaire is silicone-free. The luminaire complies with fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The ENEC certification by an independent testing laboratory is in preparation. For workstations with computer screens. Offices, Corridors, Foyers, Conference rooms, Retail areas, waiting zones.
