Continuous lines 765... E-Line Next F Mirona Lens White ET 157W 26300lm Wide (W) IK08 3 SDCM 7910040

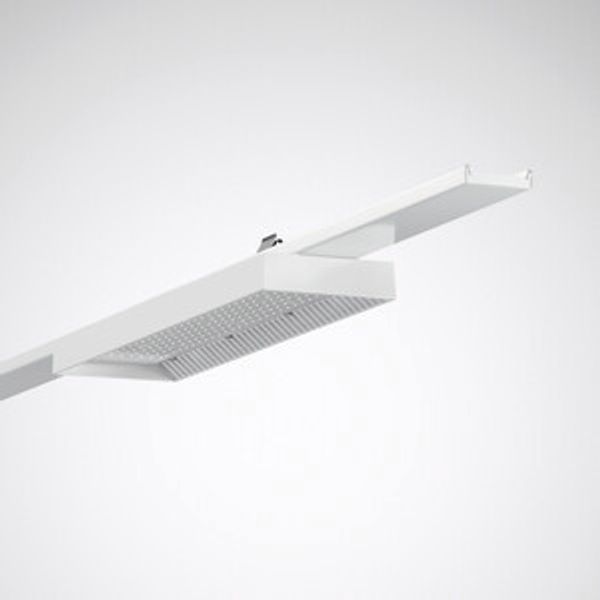

Gear tray for E-Line continuous line system with 3 integrated LED units from the Mirona Fit high bay luminaire. Suitable for use in HACCP, IFS and/or BRC Global Standard Food certified companies. Mounting to trunking with tool-free stainless steel snap fasteners. Correct mounting of the gear tray with the trunking is confirmed by a snap-in noise. The transparent mounting elements made of UV-stabilised PC can be removed after successful installation, thus ensuring theft and disassembly protection. Optical system consists of a PC lens optic. Cover of heat-treated non-laminated safety glass. With symmetric wide light intensity distribution. Optical system consists of a PC lens optic. Cover of heat-treated non-laminated safety glass. Luminaire luminous flux and light color fixed. Luminaire luminous flux 26300 lm, connected load 157 W, maximum luminous efficiency of luminaire 168 lm/W. Light colour neutral white, correlated colour temperature (CCT) 4000 K, general colour rendering index (CRI) Ra > 80. Colour locus tolerance (initial MacAdam) ≤ 3 SDCM. Mean rated service life L80(tq 45 °C) = 70,000 h, mean rated service life L85(tq 45 °C) = 50,000 h. Gear tray of sheet steel. Surface coated white (RAL 9016). Permissible ambient temperature (ta): -20 °C - +45 °C. Weight: 5,5 kg. Self-actuating electrical connection via plug contacts with phase selection. Phase selection is without use of tools. With electronic control gear unit, switchable. The control gear unit is replaceable in accordance with the ecodesign requirements (VO (EU) 2019/2020). The luminaire complies with the fundamental requirements of applicable EU regulations and product safety legislation and bears the CE symbol. The luminaire is also ENEC-certified by an independent testing authority. Luminaire available for 10 years, spare parts (LED module, control gear unit, optical system) for 15 years from date of invoice, subject to reasonable modifications in the interests of progress.
