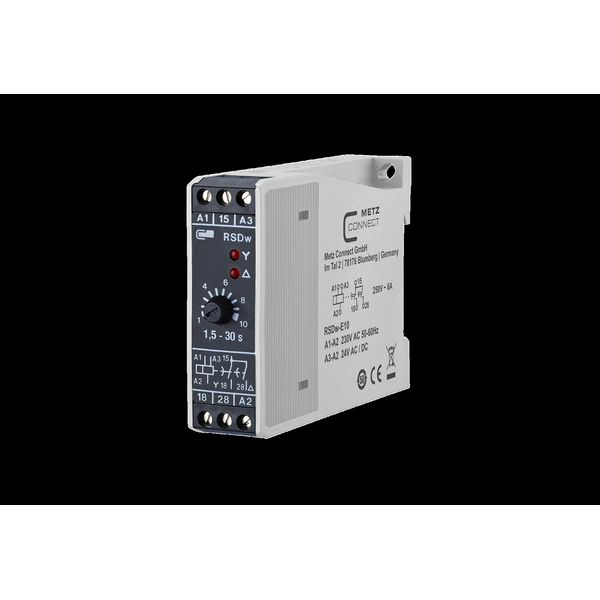

RSDw-E10, 230 V AC / 24 V AC/DC, 1,5-30 s
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
31,58 €
EAN: 4250184120384
MPN: 11016141280417
Package: 1
Box: 2
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RSDw-E10, 230 V AC / 24 V AC/DC, 1,5-30 s |
| Brand | METZ CONNECT |
| Categories |
Timer Relays
|
| Country of origin | DE |
| Harmonized System Code | 8536 4900 00 |
| Clock function, starting with pulse, variable | No |
| With semiconductor output | No |
| Function delay-on energization | No |
| Time range | 1.5-30 s |
| Type of electric connection | Screw connection |
| Rated control supply voltage at AC 50 Hz | 24-230 V |
| Suitable for DIN rail (top hat rail) mounting | Yes |
| Voltage type for actuating | AC/DC |
Packing details
| Packing level 1 | 4250184120384 |
| Packing level 2 | 4250184120384 |
Other Technical data
| Nominal current | 6 A |
| Width | 22.5 mm |
| Height | 70 mm |
| Depth | 95 mm |
| Remote operation possible | No |
| Suitable as remote control | No |
| Function flashing, starting with pause, fixed time | No |
| Function flashing, starting with pulse, fixed time | No |
| Clock function, starting with pause, variable | No |
| Function floating contact on energization | No |
| Function star-delta | Yes |
| Function delay on de-energization | No |
| Function floating contact on de-energization | No |
| Function pulse shaping | No |
| Rated control supply voltage at DC | 24 V |
| Number of outputs, undelayed, normally open contact | 2 |
| Pluggable on auxiliary contact block | No |
| Outputs, reversible delayed/undelayed | Yes |
Description
Star-delta relay with adjustable switching time for switching three-phase motors. The time is set by means of a linear potentiometer on a relative scale., Star-delta relay, fixed switching time of 50 ms
