RS378B P6 927 PSU-E VWB M43 EU
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | RS378B P6 927 PSU-E VWB M43 EU |
| Brand | PHILIPS |
| Country of origin* | NL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 9405 1190 00 |
| ETIM | EC001744 |
| Width | 0 mm |
| Colour rendering index CRI | 90-100 |
| Length | 0 mm |

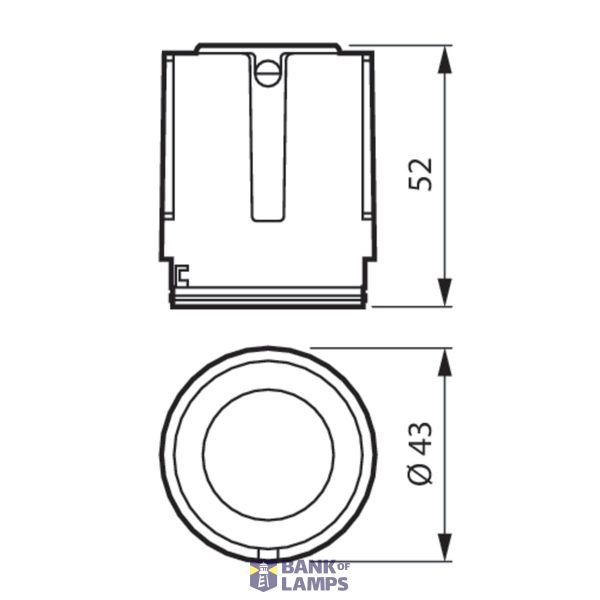

| Height/depth | 52 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-241 V |
| Degree of protection (IP) | IP20 |
| Beam angle | Variable beam angle |
| Colour temperature | 2700 K |
| Max. system power | 6 W |
| Rated luminous flux according to IEC 62722-2-1 | 0 lm |
| Luminaire efficacy | 75 lm/W |
Packing details
| Packing level 1 | 8719514950856 |
Other Technical data
| Protection class | II |
| Outer diameter | 43 mm |
| Reflector | High-gloss |
| Lamp holder | None |
| Conductor cross section | 0.5 mm² |
| Connection type | Solder |
| Colour housing | Grey |
| Surface protection | Powder coating |
| Voltage type | AC |
| With movement sensor | No |
| Suitable for lamp power | 6 W |
| Type of control gear | Not required |
| Suitable for wall mounting | No |
| Built-in width | 0 mm |
| With light sensor | No |
| Suitable for suspended mounting | No |
| Luminous intensity | 0 cd |
| Number of poles | 2 |
| Housing material | Aluminium |
| Built-in length | 0 mm |
| Light outlet | Direct |
| Light sharing | Symmetric |
| Material cover | Other |
| Emergency power supply integrated | No |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Covering of the luminaire with thermally insulating material possible | No |
| Suitable for number of lamps | 0 |
| Suitable for built-in mounting | No |
| With control gear | No |
| Suitable for workplace according to EN 12464-1 | No |
| Suitable for surface mounting | No |
| Connectable conductor cross section | 0.5-1.5 mm² |
| Surface brushed | No |
| Colour of light | Yellow |
| Adjustability | Swivelling |
| Suitable for traverse mounting | No |
| Suitable for pedestal/floor mounting | No |
| Suitable for light-track mounting | No |
| Suitable for clamp-mounting | No |
| Constant light output (CLO) | No |
| IFTTT support available | No |
| Luminous flux | 450-550 lm |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 50000 h |
| Rated life time L80/B10 at 25 °C | 50000 h |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Total harmonic distortion | 0.1 |
| Photobiological safety according to EN 62471 | RG1 |
| Rated ambient temperature according to IEC62722-2-1 | -25-40 °C |
| Filament test according to IEC 60695-2-11 | 650 °C - 30 s |
| LED nominal current at constant current | 142.5-157.5 mA |
| Dimming 0-10 V | No |
| Dimming 1-10 V | No |
| Dimming DALI | No |
| Dimming DMX | No |
| Dimming potentiometer (integrated) | No |
| Dimming GPRS | No |
| Dimming LineSwitch | No |
| Dimming manufacturer's proprietary system | No |
| Dimming mains voltage modulation | No |
| Dimming phase cut-off | No |
| Dimming phase cut-on | No |
| Dimming programmable | No |
| Dimming RF | No |
| Dimming Sine Wave Reduction | No |
| Dimming Touch and Dim | No |
| Dimming Zigbee | No |
| Dimming with push-button | No |
| No dim function | Yes |
| Light distributor | Refractor lens |
| Dimming depending on control gear | No |
| Suitable for low voltage cable system | No |
| Dimming DSI | No |
| Unified Glare Ratio (UGR) | 0 |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Max. number of luminaires per miniature circuit breaker C16 | 0 |
| Max. number of luminaires per miniature circuit breaker B16 | 0 |
| Lumen maintenance at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 35,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 50,000 h at 25 °C ambient (tq) | 0 % |
| Failure rate at median useful life of 100,000 h at 25 °C ambient (tq) | 0 % |
| Dimming DALI-2 | No |
| Flickering value Pst LM | 0.5 |
| Stroboscope effect value SVM | 1 |
| Colour temperature adjustable | No |
| Luminous flux adjustable | No |
| Beam angle adjustable | No |
| Exchangeable control gear | No |
| Suitable for ceiling mounting | Yes |
| Built-in height/depth | 0 mm |
| Power factor | 0.9 |
Downloads
Description
GreenSpace Flex heeft een elegant en modulair ontwerp zodat er combinaties mogelijk zijn met een groot aantal lichtmodules en verschillende frame-accessoires. Hierdoor zijn er mogelijkheden voor diverse aesthetische en functionele opties waarmee de vereisten van de klant vervuld kunnen worden. Of het nu gaat om hoog visueel comfort, mooie accenten, een gezellige sfeer, een naadloze integratie met een vals plafond of alleen bescherming tegen water en stof; met GreenSpace Flex is de juiste optie altijd beschikbaar.
