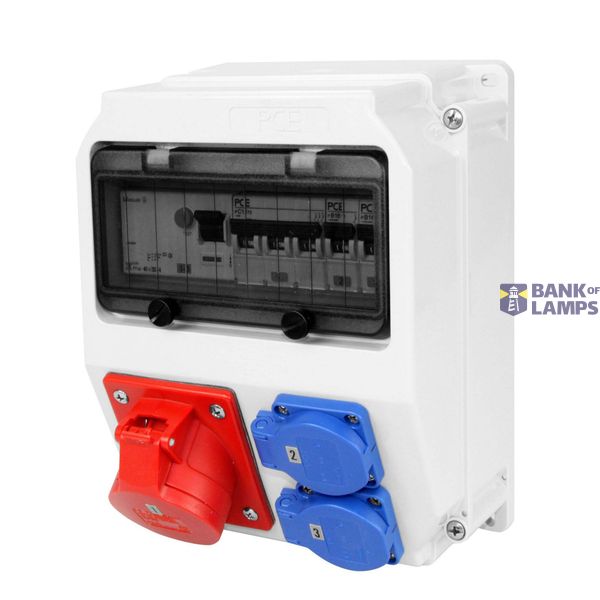

Rozdzielnica stacjonarna z tworzywa, seria LUBLIN 9M
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rozdzielnica stacjonarna z tworzywa, seria LUBLIN 9M |
| Brand | PCE |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP54 |
| Military model | No |
Packing details
| Packing level 1 | 5907711149088 |
Other Technical data
| Colour | Grey |
| Width | 204 mm |
| Height | 255 mm |
| Depth | 140 mm |
| Number of socket outlets with protective contact (type F) | 2 |
| Protection | None |
| Housing material | Plastic |
| Earth leakage switch | None |
| CEE socket outlet 16 A | None |
| CEE socket outlet 32 A | 1x32A5p400V |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Other fixtures and/or empty locations | 9 |
| Power supply/connection possibility | 1 cable (branch line) |
| Number of miniature circuit breakers | 0 |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of socket outlets Danish standard (earthing pin) | 0 |
| Diameter cable entry | M25 |
Description
Wejście M32 - wyjście 32/5 2xGS bez zabezpieczeń
