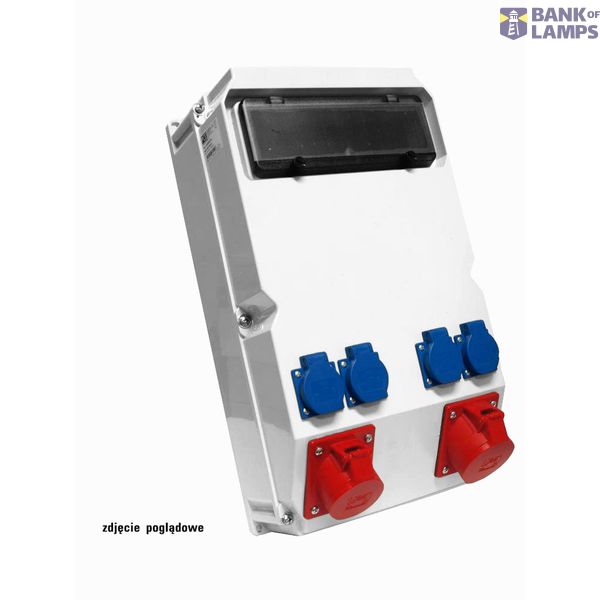

Rozdzielnica stacjonarna z tworzywa seria KOSZALIN 13M
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rozdzielnica stacjonarna z tworzywa seria KOSZALIN 13M |
| Brand | PCE |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Handling | Wall mounting |
| Degree of protection (IP) | IP54 |
| Military model | No |
Packing details
| Packing level 1 | 5907711114666 |
Other Technical data
| Colour | Grey |
| Width | 520 mm |
| Height | 297 mm |
| Depth | 165 mm |
| Number of socket outlets with protective contact (type F) | 2 |
| Protection | Overcurrent switch |
| Housing material | Plastic |
| Earth leakage switch | None |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | 1x32A5p400V |
| CEE socket outlet 63 A | 1x63A5p400V |
| CEE socket outlet 125 A | None |
| Number of miniature circuit breakers | 5 |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of socket outlets Danish standard (earthing pin) | 0 |
| Diameter cable entry | M40 |
Downloads
Description

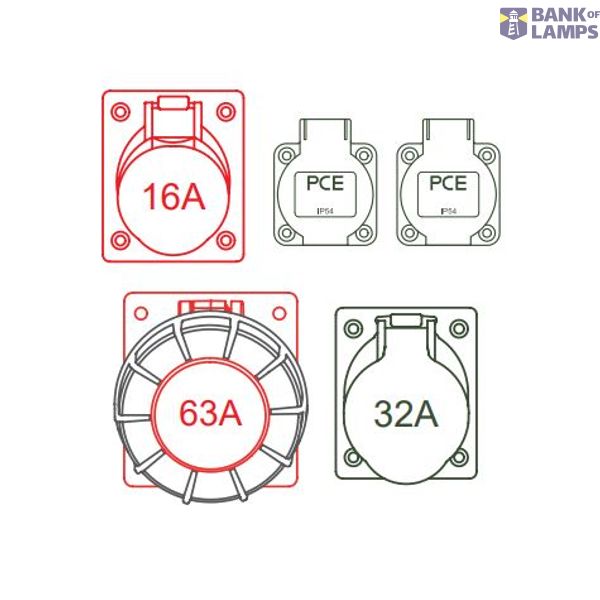

Wejście M40 - wyjście 63/5xB63 32/5xB32 16/5xB16 2xGSx2xB16
