Rozdzielnica przenośna Seria Świdnica SWID WE:16/5+2M 16/5 3GS IP44
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | Rozdzielnica przenośna Seria Świdnica SWID WE:16/5+2M 16/5 3GS IP44 |
| Brand | PCE |
| Country of origin* | PL |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8537 1098 00 |
| ETIM | EC000379 |
| Surface treatment contacts | Nickel-plated |
| Handling | Portable |
| Degree of protection (IP) | IP44 |
| Military model | No |
Packing details
| Packing level 1 | 5907711166979 |
Other Technical data
| Colour | Black |
| Width | 430 mm |
| Height | 115 mm |
| Depth | 72 mm |
| Number of socket outlets with protective contact (type F) | 3 |
| Cable length | 2 m |
| Protection | None |
| Housing material | Rubber |
| Earth leakage switch | None |
| CEE socket outlet 16 A | 1x16A5p400V |
| CEE socket outlet 32 A | None |
| CEE socket outlet 63 A | None |
| CEE socket outlet 125 A | None |
| Other fixtures and/or empty locations | 0 |
| Power supply/connection possibility | Feeder cable with plug |
| Number of miniature circuit breakers | 0 |
| Type of mains connection | CEE 16 A |
| Number of socket outlets Swiss standard type 13 | 0 |
| Number of socket outlets Swiss standard type 15 | 0 |
| Number of socket outlets Swiss standard type 23 | 0 |
| Number of socket outlets Swiss standard type 25 | 0 |
| Number of socket outlets Danish standard (earthing pin) | 0 |
| Number of poles mains connection | 5 |
Description

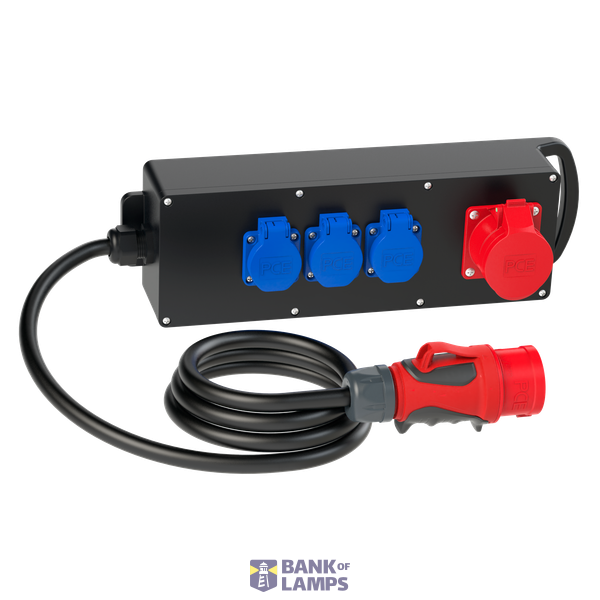

Rozdzielnica przenośna Seria Świdnica
• Wyposażenie zgodne z EN 61439
• Rozdzielnica w pełni gumowa przenośna

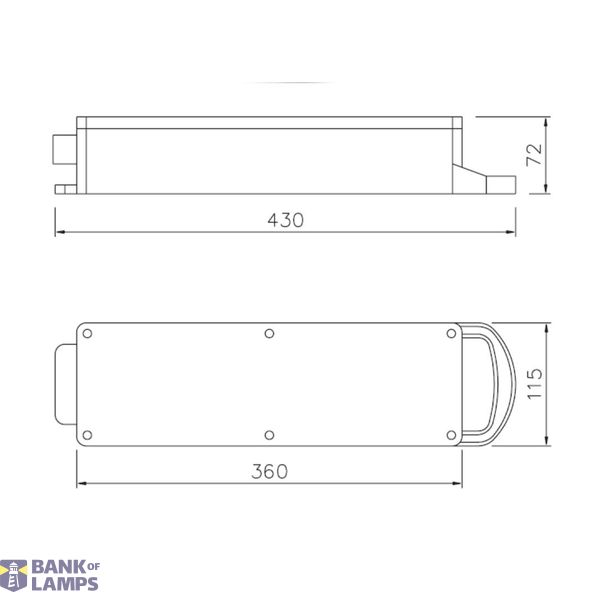

• Wymiary: wys. x szer. x głęb. = 72x430x115 mm
• Oprzewodowanie wykonane, rozdzielnica gotowa do podłączenia
• Stopień szczelności obudowy IP67
• Obudowa w pełni gumowa z uchwytem transportowym

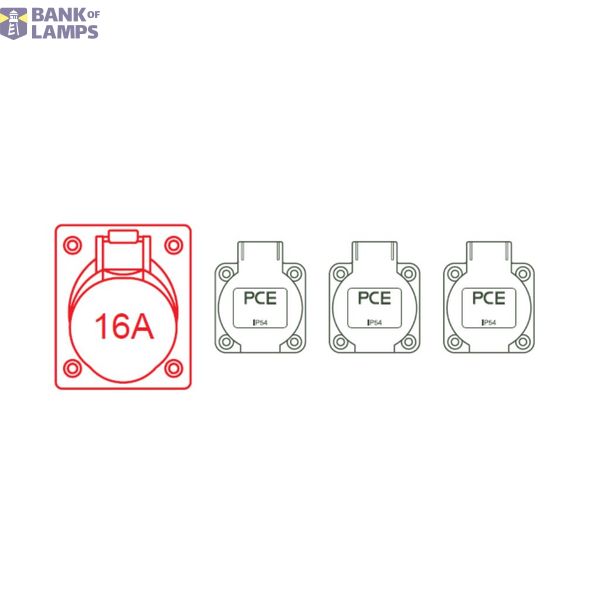

• Gniazda CEE i GS wykonane z poliamidu (PA6) z niklowanymi stykami, gniazda indywidualnie wymienne
• Wejście wtyczką przenośną na przewodzie
• 2m przewodu H05RR-F 5x2,5 z wtyczką CEE 16A 5P 400V
