ROUNDED MAXI, 20 W, 850 lm, 830, anthracite, on/off Ceiling and wall l
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
528,26 €
EAN: 4051859227748
MPN: 672298.0031.89
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ROUNDED MAXI, 20 W, 850 lm, 830, anthracite, on/off Ceiling and wall l |
| Brand | RZB |
| Categories |
Emergency luminaires
|
| Country of origin | DE |
| Harmonized System Code | 9405 1190 00 |
| Height/depth | 127 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK07 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP65 |
| Colour temperature | 3000 K |
| Max. system power | 20 W |
| Rated luminous flux according to IEC 62722-2-1 | 850 lm |
Packing details
| Packing level 1 | 4051859227748, 4051859227748 |
Other Technical data
| Mounting method | Wall surface mounted / ceiling surface mounting |
| Protection class | I |
| Outer diameter | 400 mm |
| Function | Escape route lighting |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Plug-in connection |
| Colour housing | Anthracite |
| Voltage type | AC/DC |
| Power supply system | Central (central battery) |
| Type of control gear | LED operating device current-controlled |
| With remote control | No |
| Suitable for labelling type | Other |
| Number of poles | 6 |
| Housing material | Aluminium |
| Number of lighting heads | 1 |
| Material cover | Glass opal |
| Battery quality | Other |
| With light source | Yes |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| With remote switch connection | No |
| Monitoring equipment | Other |
| Nominal current | 83-91 |
| Constant light output (CLO) | No |
| With pictogram | No |
| Type of wiring | Ending |
| Luminous flux in standby mode | 220 lm |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | -10-40 °C |
| Light distributor | Other |
| Exchangeable control gear | Yes |
Downloads
Description

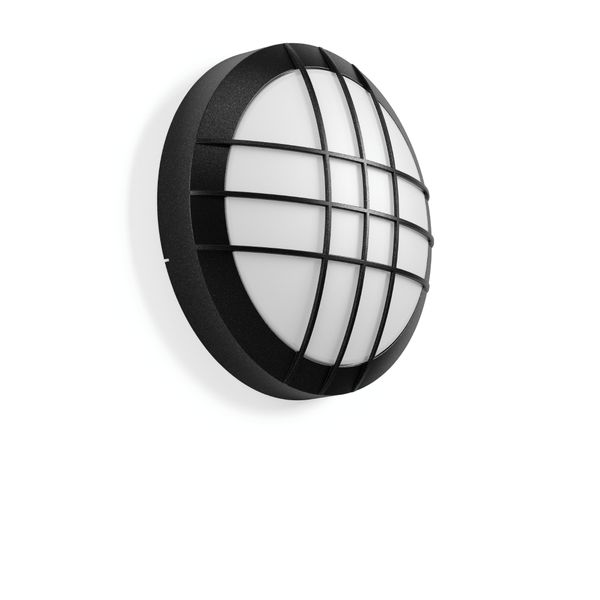

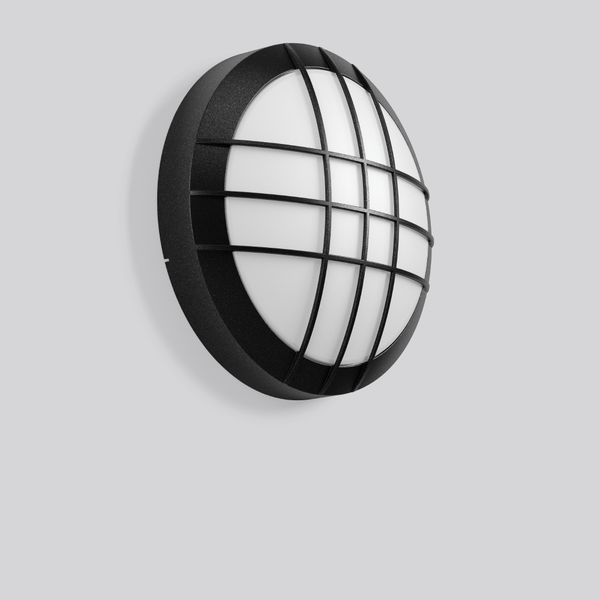

Round ceiling and wall luminaire with elegant appearance for outdoor use. For escape route illumination. Base and housing made of corrosion resistant pressure die-cast aluminium, seawater resistant powder-coated. With membrane valve as a standard to avoid condensed water. Diffuser: crystal glass (satin finish) with diffuser fixing. Base fixing slots outside of gasketed area, drill hole deviations can be compensated. Screwless cover fixing via bayonet lock with safety catch. Includes 1 anti-theft device. Mains connection 2 x 3 x 1.5 mm². Second cable inlet for loop through. Compatible with DC, ideal for central battery systems. With AC Control monitoring module for Luxifair central battery units.
