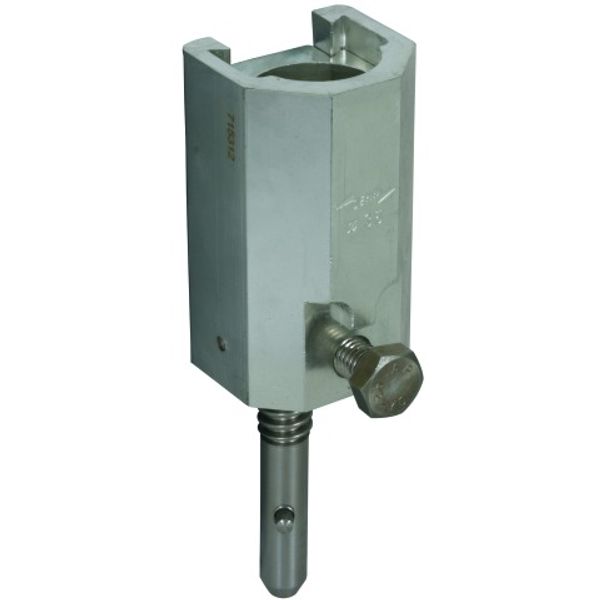

Round bolt clamp D 25mm with T pin shaft for cables 16-150mm²

Order only

EAN: 4013364132474

MPN: 715314

Package: 1

Price (excl. VAT)

268,99 €

per unit

MOQ: 1

EDT to our warehouse: 1-4 weeks

This price is valid until next price list or while stock lasts

Technical Information

Item condition	New
Manufacture name	Round bolt clamp D 25mm with T pin shaft for cables 16-150mm²
Brand	Dehn
Categories	Electrical Safety Equipment
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8535 9000 00
ETIM	EC002790
Connection type	Other
Max. short circuit current	42 kA
For wire cross section	16-150 mm²

Packing details

Packing level 1

4013364132474, 4013364132474

Other Technical data

Application	Phase-side
Anti-rotation protection	Yes
Admission of the activation rod	Spindle with cross pin

Downloads

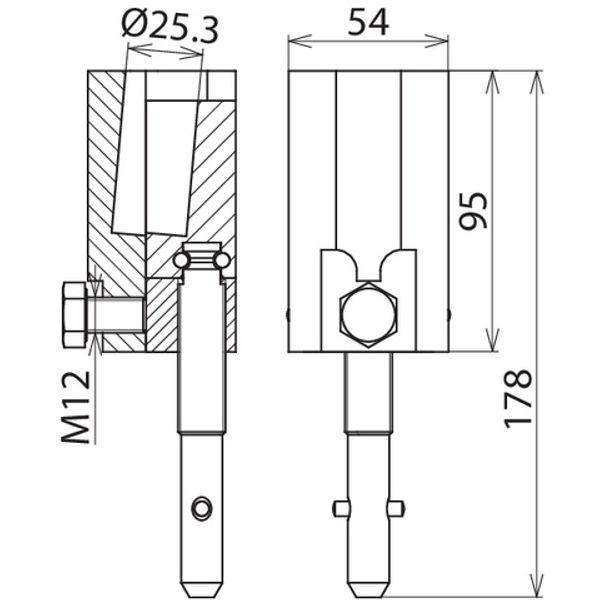

Product data sheet Dimensioned drawing Deep link REACH

Description

Round pin clamp with T pin shaft for use as phase connecting element in accordance with EN/IEC 61230 (DIN VDE 0683-100) to be fitted to the phase cable end of earthing and short-circuiting devices. PK1 anti-rotation element.
