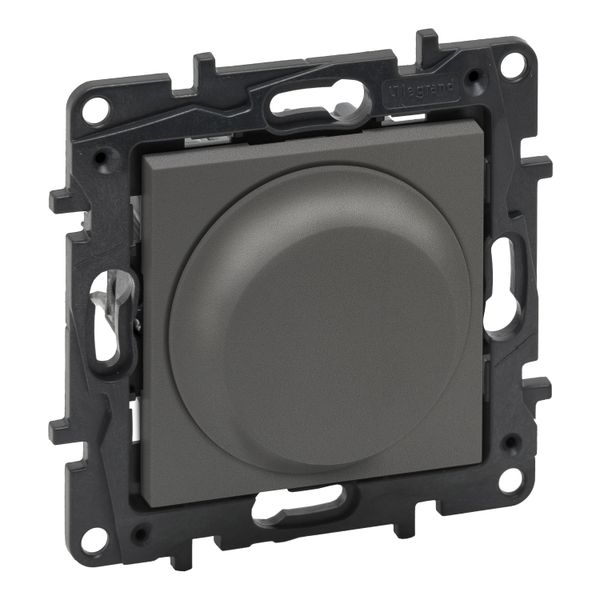

ROTARY DIMMER UNIVERSAL MEDIUM GREY
Order only
Price (excl. VAT):
32,79 €
per pcs
EAN: 3414971840003
MPN: 863452
Package: 1
Box: 12
Pallet: 120
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | ROTARY DIMMER UNIVERSAL MEDIUM GREY |
| Brand | Legrand |
| Categories |
Switches
|
| Country of origin* | CN |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Assembly arrangement | Basic element with central cover plate |
| Method of operation | Touch control button |
| Frequency | 50-60 Hz |
| Type of load | Universal |
| Nominal voltage | 100-240 V |
| Suitable for degree of protection (IP) | IP20 |
| Device width | 75.8 mm |
| Device height | 75.8 mm |
| Device depth | 52 mm |
Packing details
| Packing level 1 | 3414971840003 |
| Packing level 2 | 3414971865020 |
| Packing level 3 | 3414971901704 |
Other Technical data
| Mounting method | Flush mounted (plaster) |
| Colour | Other |
| Halogen free | Yes |
| Connection type | Screwed terminal |
| Surface protection | Untreated |
| Material quality | Thermoplastic |
| Material | Plastic |
| Type of fastening | Mounting with claw and screw |
| Light value memory | Yes |
| Substation input | No |
| Serial dimmer | No |
| Applicable with movement sensor | No |
| Applicable with transmission button | No |
| Applicable with infrared button | No |
| Applicable with presence indicator | No |
| Applicable with button | Yes |
| Applicable with time switch/timer | No |
| Impact strength | IK04 |
| Surface finishing | Matt |
| Number of modules (module system) | 1 |
| IFTTT support available | No |
| Dimming phase cut-off | Yes |
| Dimming phase cut-on | Yes |
| Min. depth of built-in installation box | 31 mm |
| App control via Bluetooth | No |
| Nominal power resistive load | 300 W |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
