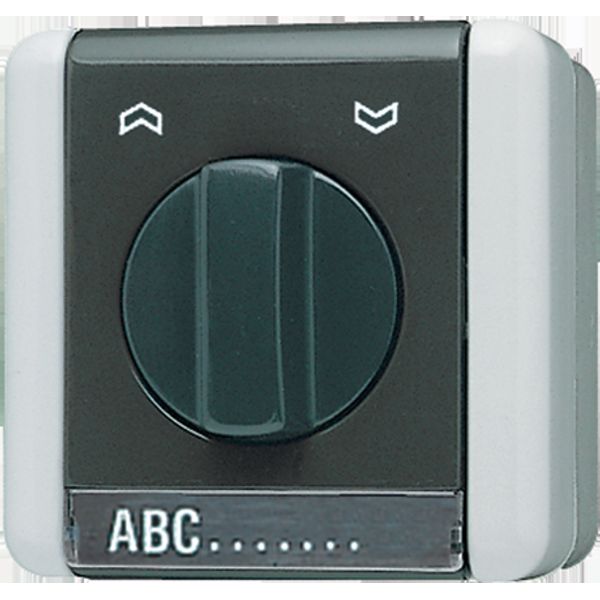

Rotary blind switch/push-button 834.20W
Order only
Price (excl. VAT):
71,15 €
EAN: 4011377660205
MPN: 834.20W
Package: 1
Estimate delivery time at our warehouse (approx.):
2-4 weeks
Technical Information
| Item condition | New |
| Manufacture name | Rotary blind switch/push-button 834.20W |
| Brand | Jung |
| Categories |
Switches
|
| Country of origin* | DE |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Surface mounted (plaster) |
| Assembly arrangement | Basic element with complete housing |
| Method of operation | Turn button |
| Colour | Grey |
| Model | 2-pole switch |
| Halogen free | Yes |
| Surface protection | Other |
| Rated current | 10 A |
| Label space/information surface | Yes |
| Material quality | Thermoplastic |
| Number of poles | 2 |
| Material | Plastic |
| Type of fastening | Mounting with screw |
| Number of buttons | 0 |
| Electrical and mechanical locking | No |
| RAL-number (similar) | 7035 |
| Mechanical controllable | Yes |
| Transparent | No |
| Surface finishing | Glossy |
| Electronic controllable | No |
| Suitable for degree of protection (IP) | IP44 |
| Number of modules (module system) | 0 |
| Min. depth of built-in installation box | 0 mm |
Packing details
| Packing level 1 | 4011377660205 |
Description
Rotary blind switch/push-button 834.20W functions as a 2-pole control device for power systems, designed to manage electrical circuits with secure mechanical operation.Operated via turn button for manual control. Rated current:10 A;Nominal voltage:250 V;Number of poles:2;Mounting method:Surface mounted (plaster);Halogen free:true;Colour:Grey (RAL 7035);Material:Plastic;Material quality:Thermoplastic;Type of fastening:Mounting with screw;Surface protection:Other;Surface finishing:Glossy; Suitable for degree of protection (IP):IP44;Model type description provided as "2-pole switch";;Assembly arrangement defined as Basic element with complete housing; Label space/information surface availability confirmed
