RLF-INOX 25018/18 N 2/6-2 K-3H SS
Order only
Not Available
Estimate delivery time to our warehouse: By request
Technical Information
| Item condition | New |
| Manufacture name | RLF-INOX 25018/18 N 2/6-2 K-3H SS |
| Brand | EATON |
| ETIM | EC001952 |
| Width | 302 mm |
| Length | 701 mm |
| Height/depth | 130 mm |
| Lamp type | Fluorescent lamp |
| Nominal voltage | 110-254 V |
| Degree of protection (IP) | IP65 |
| Beam angle | Wide beam 41-80° |
Packing details
| Packing level 1 | 4250217401824 |
Other Technical data
| Mounting method | Wall-/ceiling mounting |
| Protection class | I |
| Conductor cross section | 6 mm² |
| Connection type | Screwed terminal |
| Voltage type | AC/DC |
| Type of control gear | Electronic ballast |
| Adjustable | No |
| Number of poles | 5 |
| Housing material | Steel |
| Material cover | Glass transparent |
| For Ex-zone gas | 1, 2 |
| With light source | No |
| Suitable for number of lamps | 2 |
| With control gear | Yes |
| For Ex-Zone dust | 21, 22 |
| Constant light output (CLO) | No |
| Type of wiring | Suitable for through wiring |
| Degree of protection (NEMA) | Other |
| Rated ambient temperature according to IEC62722-2-1 | 0-40 °C |
| Exchangeable control gear | No |
| Power factor | 0.95 |
Description

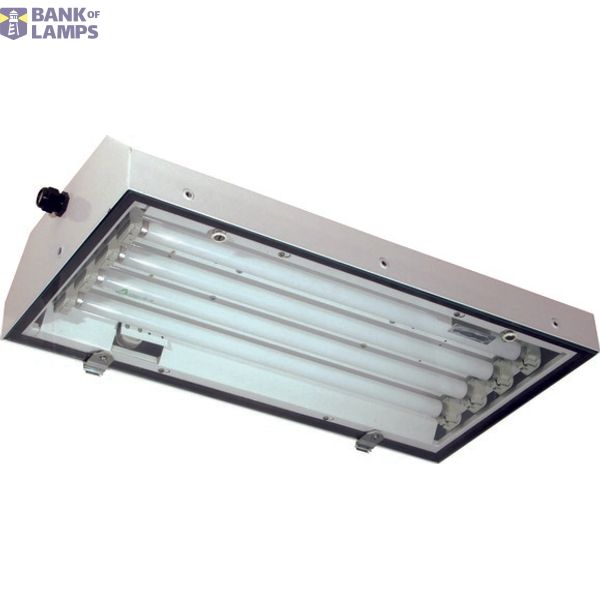

Ex-Stainless steel recessed ceiling light fitting for fluorescent lamps for Zone 1/21RLF-INOX 25018/18 N 3 h, 2 x 18 W, 2 x M25 cable gland
