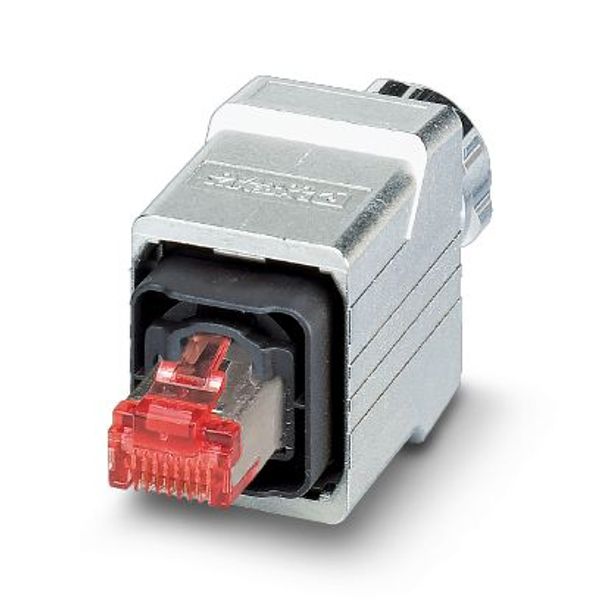

VS-PPC-C1-RJ45-MNNA-PG9-8I6 - RJ45 connector

Name: VS-PPC-C1-RJ45-MNNA-PG9-8I6 - RJ45 connector
Brand: Phoenix Contact
Price: 13.300 EUR
Availability: PreOrder

Order only

Price (excl. VAT):

13,30 € per pcs

This price is valid until 24.12.25

EAN: 4046356159951

MPN: 1608113

Box: 1

Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition	New
Manufacture name	VS-PPC-C1-RJ45-MNNA-PG9-8I6 - RJ45 connector
Brand	Phoenix Contact
Categories	Rectangular Connectors
Country of origin*	DE
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code	8536 6990 00
Locking mechanism	Push Pull
Rated voltage	72 V
Number of poles	8
Housing material	Other
Coating housing	Other
Operating temperature	-40-70 °C
Rated surge voltage	0 kV
Rated current In	0 A

Packing details

Packing level 1

4046356159951, 4046356159951

Other Technical data

Width	22 mm
Height	30 mm
Depth	57.7 mm
Number of conduit inlets	1
EMC-version	Yes
Ambient temperature	70 °C
Inflammability class of insulation material according to with UL94	V0
Material of contact surface	Other
With sealing	No
Over voltage category	I
Pollution degree	2
Number of plug-in contact rows	0
Connectable conductor cross section fine-strand without cable end sleeve	0.2 mm²
Connectable conductor cross section multi-wired	0.2 mm²
With protective conductor	No
Material contact	Other
Position cable feed	Other

Description

RJ45 connector, degree of protection: IP65/IP67, number of positions: 8, CAT6, material: Metal, connection method: IDC fast connection, cable outlet: straight, color: silver, Ethernet
