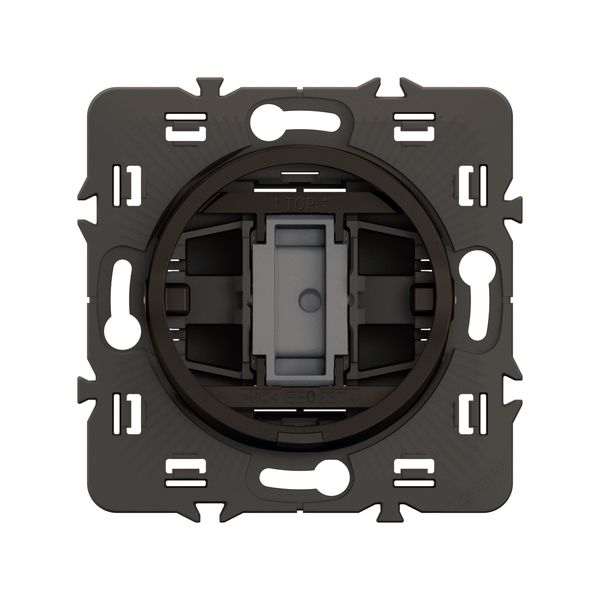

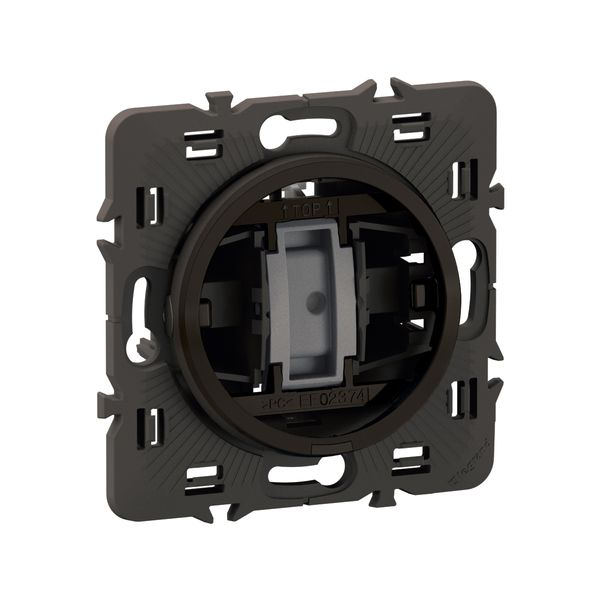

RING PUSH BUTTON LUMINOUS
Order Only
Price (excl. VAT):
50,39 €
EAN: 3414972597166
MPN: CM1030
Package: 1
Box: 20
Pallet: 200
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RING PUSH BUTTON LUMINOUS |
| Brand | Legrand |
| Categories |
Switches
|
| Country of origin | HU |
| Harmonized System Code | 8536 5080 00 |
| Nominal voltage | 250 V |
| Mounting method | Flush mounted (plaster) |
| Assembly arrangement | Basic element with holder/support |
| Method of operation | Push button |
| Colour | Other |
| Model | Single push button |
| Halogen free | Yes |
| Connection type | Push-in clamp |
| Imprint | None |
| Surface protection | Untreated |
| With signal lamp | Yes |
| Rated current | 6 A |
| Label space/information surface | No |
| Feedback-signal contact | No |
| Material quality | Thermoplastic |
| Number of poles | 2 |
| Material | Plastic |
| Type of fastening | Screw mounting |
| Number of rockers | 1 |
| With lighting | Yes |
| Impact strength | IK04 |
| With light source | Yes |
| Transparent | No |
| Surface finishing | Matt |
| Suitable for degree of protection (IP) | IP20 |
| Number of contacts as normally closed contact | 0 |
| Number of contacts as normally open contact | 0 |
| Number of contacts as change-over contact | 1 |
| Device width | 74 mm |
| Device height | 74 mm |
| Device depth | 36.5 mm |
| Number of modules (module system) | 2 |
| IFTTT support available | No |
| Min. depth of built-in installation box | 30 mm |
| Compatible with Apple HomeKit | No |
| Compatible with Google Assistant | No |
| Compatible with Amazon Alexa | No |
| Contactless type | No |
| Anti-bacterial treatment | No |
Packing details
| Packing level 1 | 3414972597166 |
| Packing level 2 | 3414972646154 |
| Packing level 3 | 3414972695213 |
