80 CE WS/EKL 5E Terminal strip 35,0mm²
In vendor's stock
Minimal order quantity: 10
Price (excl. VAT):
8,71 €
per pcs
Subtotal: 87,10 €
MOQ: 10
EAN: 4012195300069
MPN: 2056590
Package: 10
Box: 50
Pallet: 2400
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | 80 CE WS/EKL 5E Terminal strip 35,0mm² |
| Brand | OBO Bettermann |
| Categories |
Terminal Block Accessories
|
| Country of origin* | AT |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 9010 00 |
| Rated voltage | 750 V |
| Drill hole distance centrically | 18 mm |
| Rated current In | 125 A |
| Explosion-tested version 'Ex e' | No |
Packing details
| Packing level 1 | 4012195358664 |
| Packing level 2 | 4012195358671 |
| Packing level 3 | 4012197045395 |
Other Technical data
| Mounting method | Direct mounting |
| Colour | White |

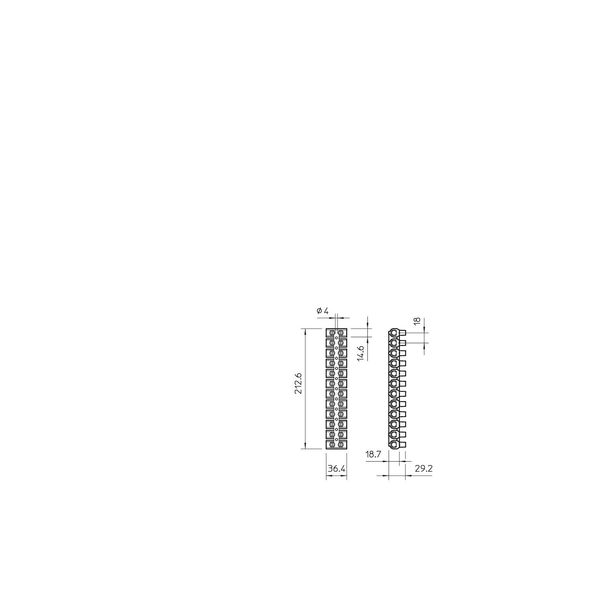

| Width | 36.4 mm |
| Halogen free | No |
| Height | 29.2 mm |
| Depth | 212.6 mm |
| Number of poles | 12 |
| Operating temperature | -5-80 °C |
| Number of clamp positions per pole | 2 |
| Closing plate required | No |
| Type of electrical connection 1 | Screw connection |
| Type of electrical connection 2 | Screw connection |
| Transparent | No |
| Connectable conductor cross section fine-strand without cable end sleeve | 25 mm² |
| Connectable conductor cross section multi-wired | 35 mm² |
Downloads
Description
Pārbaudīts atb. EN 60998.
Misiņa spailes, galvaniski cinkotas tērauda skrūves, 12 polu, atsevišķās spailēs sadalāmas līstes.
Skrūves nevar izkrist.
Maks. pieļaujamā vides temperatūra atb. EN 60998: no -5 līdz +80 °C.
Nominālais šķērsgriezuma laukums 35 - mm²
Nominālais spriegums 750 V
Nominālā strāva 125 A
Katrā pusē pie spailēm var pievienot maks. 35 mm² daudzdzīslu vai 25 mm² smalkdzīslu vadus.
