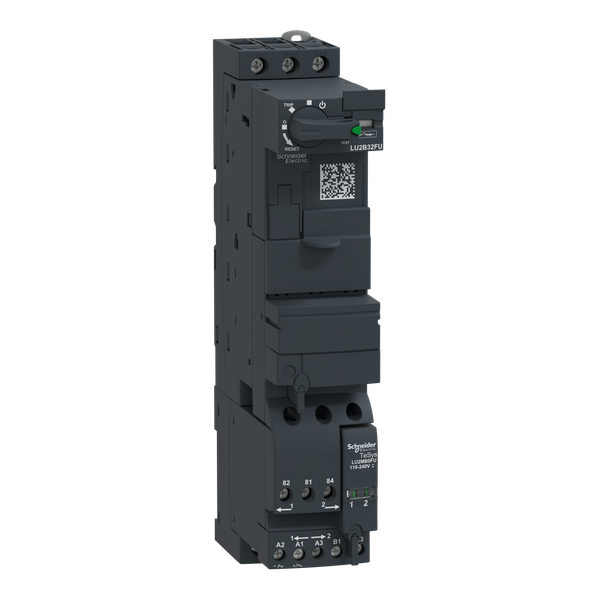

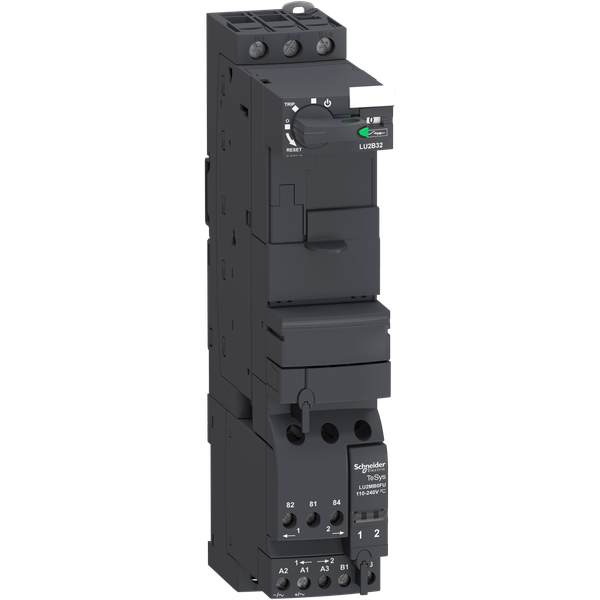

Reversing Power Base TeSys Ultra, 3P, 32 A, 690 V, IP20, 110–240 V AC
Technical Information
| Item condition | New |
| Manufacture name | Reversing Power Base TeSys Ultra 3P 32A 110-240VAC/DC |
| Brand | Schneider Electric |
| Categories |
Motor Starters
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Harmonized System Code | 8536 5080 00 |
| ETIM | EC001037 |
| Rated operation power at AC-3, 400 V | 15 kW |
| Rated control supply voltage at AC 50 Hz | 110-240 V |
| Rated control supply voltage at AC 60 Hz | 110-240 V |
| Rated control supply voltage at DC | 110-220 V |
| Degree of protection (IP) | IP20 |
| With short-circuit release | Yes |
| Voltage type for actuating | AC/DC |
| Type of motor starter | Reversing starter |
| Rated operation current at AC-3, 400 V | 32 A |
Packing details
| Packing level 1 | 3389110363005 |
| Packing level 2 | 3389110363003 |
Other Technical data
| Width | 45 mm |
| Height | 224 mm |
| Depth | 126 mm |
| With transformer | No |
| Number of command positions | 3 |
| Number of auxiliary contacts as normally open contact | 1 |
| Number of auxiliary contacts as normally closed contact | 1 |
| Suitable for emergency stop | No |
| Rated operation current Ie | 32 A |
| Number of indicator lights | 0 |
| Supporting protocol for LON | No |
| Supporting protocol for TCP/IP | No |
| Supporting protocol for ASI | No |
| Supporting protocol for PROFIBUS | No |
| Supporting protocol for CAN | No |
| Supporting protocol for INTERBUS | No |
| Supporting protocol for Modbus | No |
| Supporting protocol for Data-Highway | No |
| Supporting protocol for DeviceNet | No |
| Supporting protocol for SUCONET | No |
| Supporting protocol for other bus systems | No |
| External reset possible | No |
| Rail mounting possible | Yes |
| Supporting protocol for SERCOS | No |
| Supporting protocol for INTERBUS-Safety | No |
| With fuse | No |
| Type of electrical connection of main circuit | Screw connection |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Supporting protocol for AS-Interface Safety at Work | No |
| Supporting protocol for DeviceNet Safety | No |
| Supporting protocol for EtherNet/IP | No |
| Supporting protocol for Foundation Fieldbus | No |
| Supporting protocol for PROFINET CBA | No |
| Supporting protocol for PROFINET IO | No |
| Supporting protocol for PROFIsafe | No |
| Supporting protocol for SafetyBUS p | No |
| Rated operation power at AC-3, 230 V, 3-phase | 7.5 kW |
| Rated power, 460 V, 60 Hz, 3-phase | 15 kW |
| Rated power, 575 V, 60 Hz, 3-phase | 15 kW |
| Ambient temperature, upper operating limit | 70 °C |
| Rated conditional short-circuit current, type 2, 400 V | 50000 A |
| Rated conditional short-circuit current, type 2, 230 V | 50000 A |
| Rated conditional short-circuit current, type 1, 480 Y/277 V | 10000 A |
| Rated conditional short-circuit current, type 1, 600 Y/347 V | 4000 A |
| Coordination class according to IEC 60947-4-3 | Class 2 |
Downloads
Description
TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0FU to be supplied with 110-240V AC / 110-220V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
