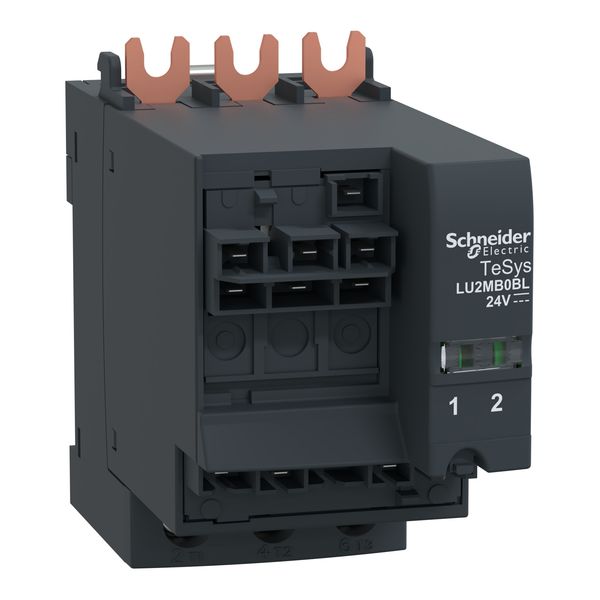

Reversing module TeSys U 32A 24V DC
In vendor's stock
Price (excl. VAT):
198,48 €
EAN: 3389110363777
MPN: LU2MB0BL
Package: 1
Box: 12
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | Reversing module TeSys U 32A 24V DC |
| Brand | Schneider Electric |
| Categories |
Combined Contactors
|
| Country of origin* | FR |
| * The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager. | |
| Function | Reversing contactor |
| Rated operation power at AC-3, 400 V | 18.5 kW |
| Rated operation current Ie at AC-3, 400 V | 38 A |
| Rail mounting possible | Yes |
| Rated control supply voltage at DC | 24 V |
| Degree of protection (IP) | IP20 |
| Type of electrical connection of main circuit | Screw connection |
| Voltage type for actuating | DC |
Packing details
| Packing level 1 | 3389110363777 |
| Packing level 2 | 3389110363775 |
Other Technical data
| Number of normally open contacts as main contact | 0 |
| Number of normally closed contacts as main contact | 0 |
| Rated operation current Ie at AC-1, 400 V | 0 A |
| Type of electrical connection for auxiliary- and control current circuit | Screw connection |
| Degree of protection (NEMA) | Other |
| Rated operation power NEMA | 14.9 kW |
Downloads
Description
TeSys U reversing module for vertical mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24V DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1C and a control terminal block LU9M1 to complete the vertical mounting. Green Premium compliant (RoHS/REACh).
