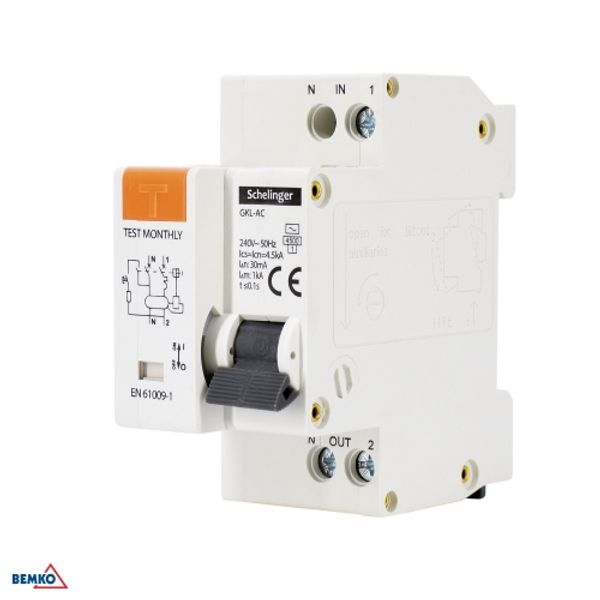

RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 2P C 16A 30mA TYP AC SCHELINGER image 1
Bemko

RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 2P C 16A 30mA TYP AC SCHELINGER

In stock: No Vendor stock: No Minimal order quantity: 1
Price (excl. VAT):
Price by request
This price is valid while stock lasts
EAN: 5900280962126
MPN: A08-GKL-AC-C16
Package: 1
Box: 60
Estimate delivery time at our warehouse (approx.): By request

Technical Information

Item condition New
Manufacture name RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 2P C 16A 30mA TYP AC SCHELINGER
Brand Bemko
Categories RCCB - (Residual Current Breakers)
Country of origin CN
Mounting method DIN rail
Rated current 16 A
Rated voltage 240 V
Rated fault current 0.03 A
Degree of protection (IP) IP20

Packing details

Packing level 1 5900280962126
Packing level 2 5900280962454

Other Technical data

Voltage type AC
Built-in depth 74 mm
Rated insulation voltage Ui 500 V
Selective protection No
Pollution degree 2
Width in number of modular spacings 2
Short-time delayed tripping No
Explosion-proof No
Frequency 50 Hz
Connectable conductor cross section solid-core 1-6 mm²
With interlocking device No
Ambient temperature during operating -5-40 °C
Additional equipment possible No
Rated impulse withstand voltage Uimp 4 kV

Downloads

Product data sheet
