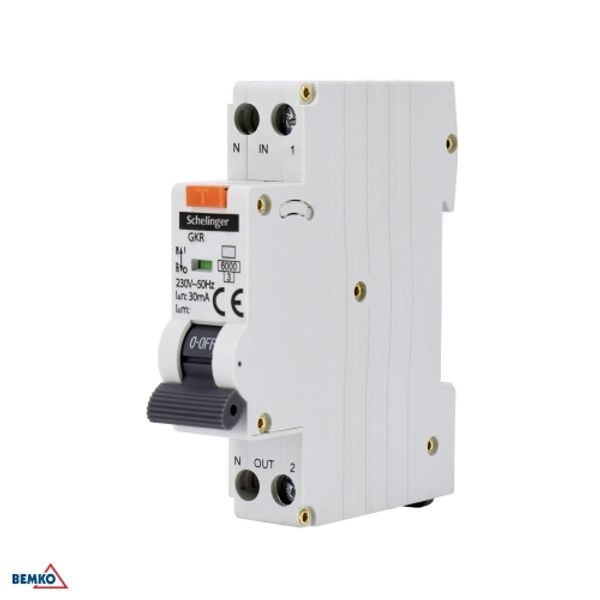

RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 1P B 20A 30mA TYPE A SCHELINGER
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
Price by request
EAN: 5900280961983
MPN: A08-GKR-A-B20
Package: 1
Box: 120
Estimate delivery time at our warehouse (approx.):
By request
Technical Information
| Item condition | New |
| Manufacture name | RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 1P B 20A 30mA TYPE A SCHELINGER |
| Brand | Bemko |
| Categories |
RCCB - (Residual Current Breakers)
|
| Country of origin | CN |
| Mounting method | DIN rail |
| Rated current | 20 A |
| Rated voltage | 230 V |
| Rated fault current | 0.03 A |
| Degree of protection (IP) | IP20 |
Packing details
| Packing level 1 | 5900280961983 |
| Packing level 2 | 5900280962720 |
| Packing level 3 | 5900280962317 |
Other Technical data
| Voltage type | AC |
| Built-in depth | 67 mm |
| Rated insulation voltage Ui | 500 V |
| Selective protection | No |
| Short-circuit breaking capacity (Icw) | 6 kA |
| Pollution degree | 2 |
| Width in number of modular spacings | 1 |
| Short-time delayed tripping | No |
| Explosion-proof | No |
| Frequency | 50 Hz |
| Connectable conductor cross section solid-core | 1-6 mm² |
| With interlocking device | No |
| Ambient temperature during operating | -25-40 °C |
| Additional equipment possible | No |
| Rated impulse withstand voltage Uimp | 4 kV |
