EATON

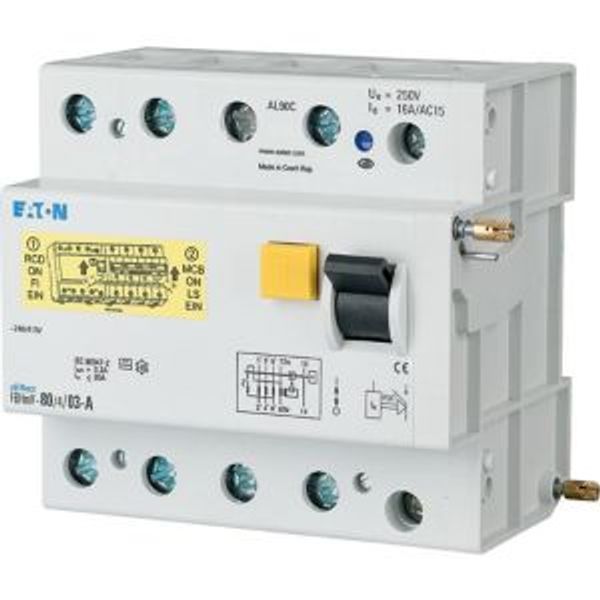

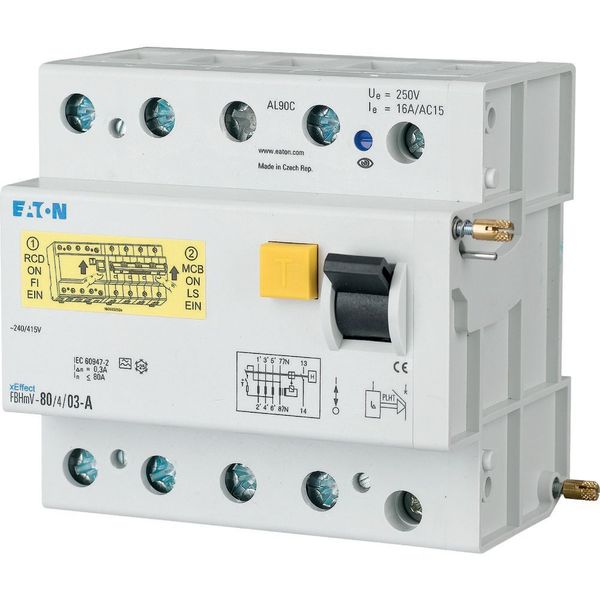

Residual-current circuit breaker trip block for AZ, 80A, 4pole, 300mA, type S/A

Order only
Price (excl. VAT):
180,93 €
This price is valid until 24.12.25
EAN: 4015081666805
MPN: 170171
Package: 1
Box: 4
Estimate delivery time at our warehouse (approx.): 4-6 weeks

Technical Information

Item condition New
Manufacture name Residual-current circuit breaker trip block for AZ, 80A, 4pole, 300mA, type S/A
Brand EATON
Categories RCCB - (Residual Current Breakers)
Country of origin* CZ
* The actual country of origin may differ depending on the delivery batch. To confirm the specific country of origin, please contact your account manager.
Harmonized System Code 8536 2090 00
Nominal current 80 A
Number of poles 4
Leakage current type A
Rated fault current 0.3 A
Nominal voltage 240-415 V
Degree of protection (IP) IP20
Ambient temperature during operating -25-40 °C

Packing details

Packing level 1 4015081666805
Packing level 2 9008790517143

Other Technical data

Rated insulation voltage Ui 440 V
Delay adjustable No
Max. delay time 40 ms
Surge current capacity 5 kA
Pollution degree 2
Frequency 50 Hz
Connectable conductor cross section solid-core 2.5-50 mm²
Connectable conductor cross section multi-wired 2.5-50 mm²
With interlocking device Yes
Rated fault current adjustable No
Anti-nuisance tripping version No
Rated impulse withstand voltage Uimp 4 kV

Description

Attachable residual current circuit-breaker unit FBHmV, 4 pole, Rated current In: 80 A, Rated short-circuit strength Icn:, Rated fault current IΔN: 0.3 A, Switchgear for industrial and advanced commercial applications
