RESI9 4P 63A 30MA A

In stock: No Vendor stock: No Minimal order quantity: 1

Price (excl. VAT):

273,40 €

This price is valid until 24.12.25

EAN: 3606481905154

MPN: R9R35463

Package: 1

Estimate delivery time at our warehouse (approx.): 6-9 weeks

Technical Information

Item condition	New
Manufacture name	RESI9 4P 63A 30MA A
Brand	Schneider Electric
Categories	RCCB - (Residual Current Breakers)
Country of origin	ES
Mounting method	DIN rail
Rated current	63 A
Rated voltage	400 V
Number of poles	4
Rated fault current	30 A
Leakage current type	A
Degree of protection (IP)	IP20

Packing details

Packing level 1

3606481905154

Other Technical data

Built-in depth	44 mm
Rated insulation voltage Ui	440 V
Selective protection	No
Short-circuit breaking capacity (Icw)	6 kA
Surge current capacity	0.25 kA
Pollution degree	2
Width in number of modular spacings	4
Short-time delayed tripping	No
Frequency	50/60 Hz
Connectable conductor cross section solid-core	1-35 mm²
Connectable conductor cross section multi-wired	1-25 mm²
With interlocking device	No
Ambient temperature during operating	-25-60 °C
Additional equipment possible	No
Rated impulse withstand voltage Uimp	4 kV

Description

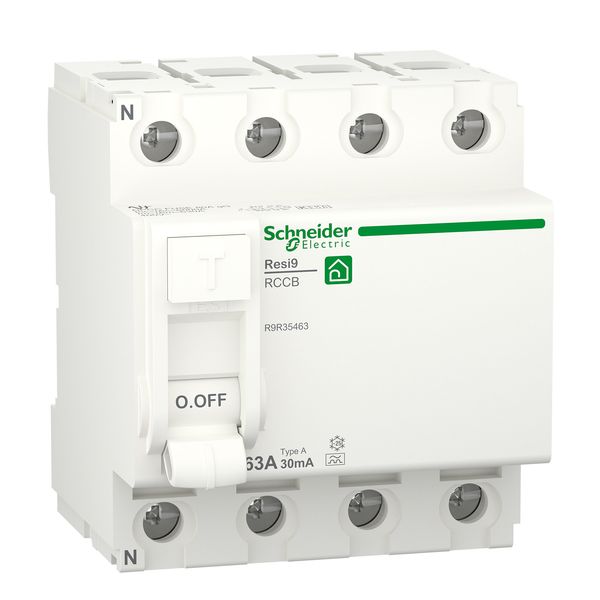

This is a Resi9 RCCB residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 63A, A type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. As an high sensitivity residual current circuit breaker, it is recommended for all power sockets. It is also compulsory for all equipment in bathrooms, outdoors. The Resi9 is targeted to the residential market for individual and collective buildings. This product is compliant with EN/IEC 61008-2-1 standard. The (Inc/IΔc) conditional rated short circuit current is 6000 A. The (Im/IΔm) rated making and breaking capacity is 630A. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is white (RAL9003). The dimensions are (W) 72mm x (H) 81mm x (D) 73mm. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 40°C. The storage temperature is from -40°C to 80°C.
