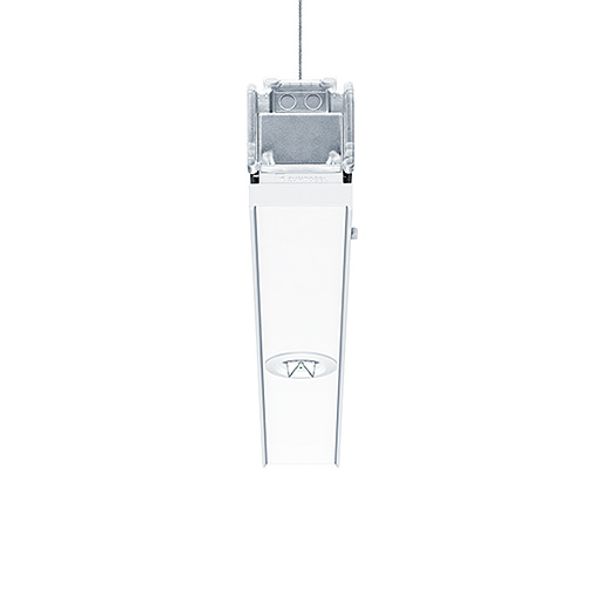

RESCLITE PRO TEC-GP ESC E1D WH - Safety luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
379,91 €
EAN: 9008709989887
MPN: 42185790
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RESCLITE PRO TEC-GP ESC E1D WH - Safety luminaire |
| Brand | Zumtobel |
| Categories |
Emergency luminaires
|
| Country of origin | RS |
| Harmonized System Code | 9405 6180 00 |
| Width | 60 mm |
| Length | 500 mm |
| Height/depth | 85 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP20 |
| Max. system power | 4.7 W |
| Rated luminous flux according to IEC 62722-2-1 | 250 lm |
Packing details
| Packing level 1 | 9008709989887, 9008709989887 |
Other Technical data
| Protection class | I |
| Lamp holder | None |
| Conductor cross section | 2.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Housing material | Steel |
| Material cover | Plastic, transparent |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Exchangeable control gear | No |
| Power factor | 0.7 |
Downloads
Safety data sheet
Deep link REACH
Declaration DOC CE (Declaration of conformity CE)
Declaration RoHS
Sales brochure
Description
LED emergency luminaire for escape route lighting with min. 1 lux compliant to EN 1838; Room height 2.2 to 7 m; 2 high power LEDs, neutral white 4,000 K; lens made of polycarbonate; optimum thermal management via heat sink; TECTON module; Tool-free connection to TECTON continuous row system; roll-formed sheet steel with polyester paint finish; housing colour white (close to RAL9016); Luminaire with local battery supply for 1 h emergency lighting in maintained or non-maintained mode, with automatic test (auto-test) via the luminaire, optional central monitoring via DALI, display of luminaire status via status LED; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained and non-maintained mode: +5 °C to +30 °C; power supply: 220-240 V AC (+/- 10 %), 50-60 Hz; Luminaire input power: 4.7 W (with battery fast-charging in maintained mode), typical connected load (without battery charging): 3.5 W in maintained mode / 1.1 W in non-maintained mode; Non-maintained and maintained mode settable via jumper and NFC interface; IP20; SC1; Luminaire wired with halogen-free and silicone-free leads; Impact strength: IK04; Dimensions: 500 x 60 x 85 mm; weight: 0.84 kg; Robust, integrated battery with 3-year warranty. Valid according to terms of the manufacturer's warranty, available at https://www.zumtobel.com/media/downloads/Garantiebedingungen_EN.pdf ; Battery warranty invalid if installation takes place three (3) months after delivery EXW (Incoterms 2010)
Spareparts
5037319381495
