RESCLITE PRO MRCR MINI ANT ECD WH - Safety luminaire
In stock: No
Vendor stock: No
Minimal order quantity: 1
Price (excl. VAT):
340,55 €
EAN: 9008709988606
MPN: 42185668
Package: 1
Estimate delivery time at our warehouse (approx.):
4-6 weeks
Technical Information
| Item condition | New |
| Manufacture name | RESCLITE PRO MRCR MINI ANT ECD WH - Safety luminaire |
| Brand | Zumtobel |
| Categories |
Emergency luminaires
|
| Country of origin | RS |
| Harmonized System Code | 9405 6180 00 |
| Height/depth | 3 mm |
| Lamp type | LED not exchangeable |
| Impact strength | IK04 |
| Nominal voltage | 220-240 V |
| Degree of protection (IP) | IP40 |
| Max. system power | 3.9 W |
| Rated luminous flux according to IEC 62722-2-1 | 307 lm |
Packing details
| Packing level 1 | 9008709988606, 9008709988606 |
Other Technical data
| Mounting method | Built-in |
| Protection class | I |
| Outer diameter | 50 mm |
| Lamp holder | None |
| Conductor cross section | 1.5 mm² |
| Connection type | Other |
| Colour housing | White |
| Voltage type | AC |
| Housing material | Aluminium |
| Material cover | Plastic, transparent |
| With light source | No |
| Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24 | No |
| Suitable for number of lamps | 1 |
| Constant light output (CLO) | No |
| Type of wiring | Ending |
| Rated life time L70/B50 at 25 °C | 100000 h |
| Max. number of luminaires per miniature circuit breaker C16 | 120 |
| Max. number of luminaires per miniature circuit breaker B16 | 60 |
| Lumen maintenance at median useful life of 50,000 h at 25 °C ambient (tq) | 95 % |
| Lumen maintenance at median useful life of 100,000 h at 25 °C ambient (tq) | 95 % |
| Exchangeable control gear | No |
| Built-in height/depth | 8 mm |
| Power factor | 0.66 |
Downloads
Description

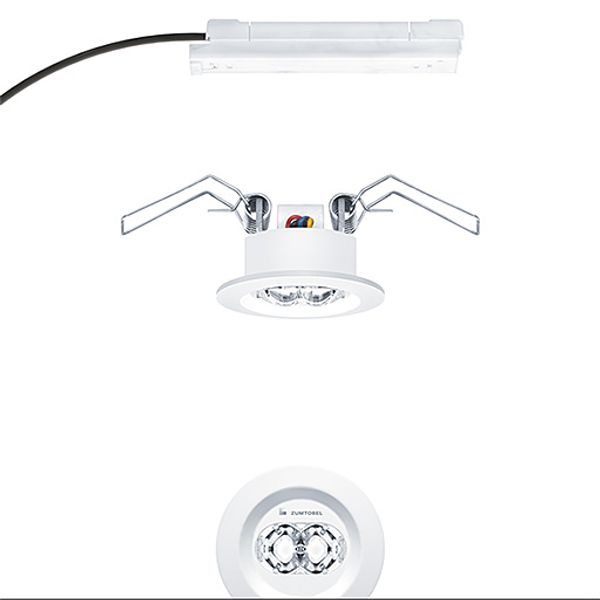

LED emergency luminaire for antipanic lighting with min. 0,5 lux acc. to EN 1838; Room height 2.2 to 7 m; 2 high power LEDs, neutral white 4,000 K; lens made of polycarbonate; optimum thermal management via heat sink; Recessed ceiling luminaire for 40 mm ceiling cut-out and ceiling thicknesses from 1-25 mm; tool-free rapid luminaire installation through specially shaped retaining springs; tool-free replacement of control unit; Cover ring diecast aluminium, powder-coated; housing colour white (close to RAL9016); Polypropylene (PP) gearbox for installation in ceiling recess; Luminaire for central emergency light supply, for single luminaire monitoring via DALI (DALI-2 certified), settable emergency light level; NFC interface for addressing, configuration and maintenance via PROset Pen (article no.: 22170290) or PROset app; addressing also alternatively possible visually or via EZ-addressing; Maintained and non-maintained mode: -40 °C to +45 °C; power supply: 220-240 V AC (+/- 10 %) 50-60 Hz; 176-280 V DC; Luminaire input power: 3.9 W (in maintained mode): Power in non-maintained mode: 0,3 W; Non-maintained and maintained mode settable via the central battery system; boost start function for faster orientation in emergencies thanks to higher illuminance levels at the start of emergency operation
; IP40; SC1; Luminaire wired with halogen-free and silicone-free leads; Impact strength: IK04; Dimensions: Ø50 x 3 mm; weight: 0.14 kg;
